MPK-215 small ASW hydrofoils (project 11451) (1987 - 1990)
MPK-215 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ÌÏÊ-215 [MPK-215] | 501 | More, Feodosia | 17.4.1982 | 8.8.1987 | 31.12.1987 | stricken 5.2001 | |
| ÌÏÊ-220 [MPK-220], 4.1998- Âëàäèìèðåö [Vladimirets] | 502 | More, Feodosia | 12.5.1984 | 20.8.1990 | 30.12.1990 | stricken 2014 | |
| ÌÏÊ-231 [MPK-231] | 503 | More, Feodosia | 1989 | --- | --- | suspended 1991 |
|
Displacement standard, t |
364 |
|
Displacement normal, t |
470 |
|
Length, m |
50.0 |
|
Breadth, m |
9.89 deck 21.1 foils |
|
Draught, m |
2.16 hull 7.26 foils |
|
No of shafts |
3 twin propellers / 2 azipods |
|
Machinery |
501: 1 M10B + 1 M10D gas turbines (on outboard shafts), 1 M16 gas turbine (on central shaft) / 2 DRA-211 diesels (on azipods) others: 2 M10D gas turbine (outboard), 1 M16 gas turbine (central) / 2 DRA-211 diesels (on azipods) |
|
Power, h. p. |
501: 38000 (18000+20000)+8500=46500 / 2200 others: 40000+8500=48500 / 2200 |
|
Max speed, kts |
60.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1230(12) |
|
Armament |
1 x 8 Strela-3 SAM (8 9M36), 1 x 1 - 176/59 AK-176, 1 x 6 - 30/54 AK-630M, 2 x 4 - 400 TT |
|
Sensors |
MR-123-01 Vympel-A, MR-220 Reyd radar, Zvezda-M1-01, MGS-407K sonars, 2x PK-16 decoy RL |
|
Complement |
39 |
Project history: Development of Project 1141with stronger armament. Yard No 504 was cancelled.
Modernizations: None.
Naval service: No significant events.

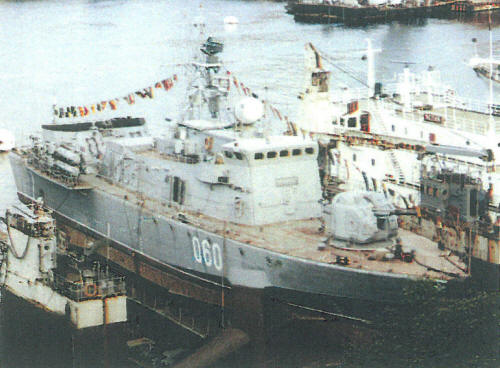

Vladimirets 2000
