ALEKSANDR KUNAKHOVICH small ASW hydrofoil (project 1141) (1977)

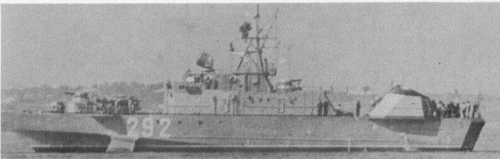

Aleksandr Kunakhovich 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Александр Кунахович [Aleksandr Kunakhovich] | 801 | Gorkiy SYd, Zelenodolsk | 29.7.1974 | 26.10.1975 | 31.12.1977 | test ship 6.1991, stricken 3.1994 |
|
Displacement standard, t |
349 |
|
Displacement normal, t |
465 |
|
Length, m |
50.2 |
|
Breadth, m |
9.76 deck 20 foils |
|
Draught, m |
2.17 hull 6.90 foils |
|
No of shafts |
3 twin propellers / 2 water jets |
|
Machinery |
2 M10A gas turbines + 1 M10B gas turbine (on propellers) / 2 DRA-211 diesels (on water jets) |
|
Power, h. p. |
36000+18000=54000 / 2200 |
|
Max speed, kts |
52 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(8) |
|
Armament |
2 x 6 - 30/54 AK-630M, 2 x 4 - 400 TT |
|
Sensors |
MR-123-01 Vympel-A, MR-220 Reyd radar, Sheksna, MGS-407K sonars |
|
Complement |
36 |
Project history: Aleksandr Kunakhovich was the largest Soviet hydrofoil, and like Project 1240 she had submerged foils. The two nests of TT (two above two) were located on either side, forward of the superstructure in Project 1141, well aft in Project 1145. At the time of commission main armament of Aleksandr Kunakhovich were 8 SET-72 torpedoes.
Modernizations: 1990: - 2 x 4 - 400 TT; + 2 x 4 Medvedka ASuM (8 K77R)
Naval service: No significant events.
Aleksandr Kunakhovich 1978
