GRAD SVIYAZHSK missile corvettes (project 21631) (2013-)
Uglich 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Град Свияжск [Grad Sviyazhsk] | 652 | 631 | SSZ im. Gorkogo, Zelenodolsk | 27.8.2010 | 9.3.2013 | 12/2013 | in service (2019) |
| Углич [Uglich] | 653 | 632 | SSZ im. Gorkogo, Zelenodolsk | 22.7.2011 | 10.4.2013 | 12/2013 | in service (2019) |
| Великий Устюг [Velikiy Ustyug] | 651 | 633 | SSZ im. Gorkogo, Zelenodolsk | 27.8.2011 | 21.5.2014 | 15.11.2014 | in service (2019) |
| Зелёный Дол [Zelionyy Dol] | 562 | 634 | SSZ im. Gorkogo, Zelenodolsk | 29.8.2012 | 2.4.2015 | 13.11.2015 | in service (2019) |
| Серпухов [Serpukhov] | 563 | 635 | SSZ im. Gorkogo, Zelenodolsk | 25.1.2013 | 3.4.2015 | 13.11.2015 | in service (2019) |
| Вышний Волочек [Vyshniy Volochek] | 609 | 636 | SSZ im. Gorkogo, Zelenodolsk | 29.8.2013 | 22.8.2016 | 1.6.2018 | in service (2019) |
| Орехово-Зуево [Orekhovo-Zuyevo] | 626 | 637 | SSZ im. Gorkogo, Zelenodolsk | 29.5.2014 | 17.6.2018 | 10.12.2018 | in service (2019) |
| Ингушетия [Ingushetiya] | 638 | SSZ im. Gorkogo, Zelenodolsk | 29.8.2014 | 2019 | 2019 | building (2019) | |
| Грайворон [Grayvoron] | 639 | SSZ im. Gorkogo, Zelenodolsk | 10.4.2015 | 2019 | 2019 | building (2019) | |
| Град [Grad] | 640 | SSZ im. Gorkogo, Zelenodolsk | 24.4.2017 | 2021 | 2021 | building (2019) | |
| Наро-Фоминск [Naro-Fominsk] | 641 | SSZ im. Gorkogo, Zelenodolsk | 23.2.2018 | 2022 | 2022 | building (2019) | |
| Ставрополь [Stavropol'] | 642 | SSZ im. Gorkogo, Zelenodolsk | 12.7.2018 | 2023 | 2023 | building (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
950 |
|
Length, m |
74.1 |
|
Breadth, m |
11.0 |
|
Draught, m |
2.60 |
|
No of shafts |
2 waterjets |
|
Machinery |
631-635: 4 MTU 16V4000 M90 diesels 636-642: 4 CHD622V20 diesels |
|
Power, h. p. |
631-635: 14800 636-642: 15600 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
631-641: 1 x 8 Kalibr-NK CruM/SSM (VLS, 8 3M14/3M54), 2 x 6 Gibka SAM (24 Igla-1M), 1 x 1 - 100/59 A-190-01, 1 x 12 - 30/54 AK-630M-2 Duet, 2 x 1 - 14.5/89 642: 1 x 8 Kalibr-NK CruM/SSM (VLS, 8 3M14/3M54), 1 x (8 Pantsir-M SAM + 2 x 6 - 30/68) Pantsir-M CIWS (40 57E6), 2 x 6 Gibka SAM (24 Igla-1M), 1 x 1 - 100/59 A-190-01, 2 x 1 - 14.5/89 |
|
Sensors |
5P-26 Pozitiv, MR-231, 5P-10-03 Laska radars, 2x PK-10 Smelyy decoy launchers |
|
Complement |
52 |
Project history: Missile-armed variant of rocket-armed Buyan project. 3 more ships are planned but not yet ordered.
Modernizations: None.
Naval service: No significant events.

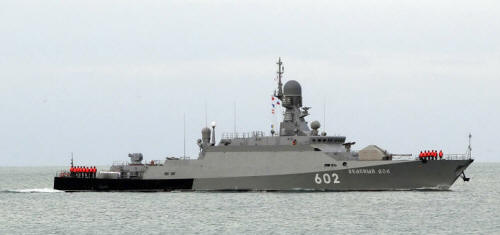

Zelionyy Dol 2015
