DELFIN guard ships (project 1159) (1975 - 1985)
SKR-482 guard ships (project 1159T) (1980 - 1987)
SKR-201 guard ships (project 1159TR) (1985 - 1986)
Delfin 1980
SKR-482 1980
SKR-201 1985
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 1159 | |||||||
| Äåëüôèí [Delfin] | 201 | Gorkiy Yd, Zelenodolsk | 21.4.1973 | 19.7.1975 | 31.12.1975 | to Bulgaria 2.1991 (Ñìåëè [Smeli]) | |
| Íåðïà [Nerpa] | 202 | Gorkiy Yd, Zelenodolsk | 22.10.1974 | 4.6.1977 | 31.12.1977 | to East Germany 7.1978 (Rostock) | |
| Êðå÷åò [Krechet] | 203 | Gorkiy Yd, Zelenodolsk | 19.1.1977 | 3.7.1978 | 31.12.1978 | to East Germany 5.1979 (Berlin - Haupstadt der DDR) | |
| Ñîêîë [Sokol] | 204 | Gorkiy Yd, Zelenodolsk | 1/1978 | 21.4.1979 | 30.11.1979 | to Yugoslavia 3.1980 (Ñïëèò [Split]) | |
| ÑÊÐ-481 [SKR-481] | 205 | Gorkiy Yd, Zelenodolsk | 25.12.1979 | 24.12.1981 | 30.9.1982 | to Yugoslavia 12.1982 (Êîïåð [Koper]) | |
| ÑÊÐ-149 [SKR-149] | 206 | Gorkiy Yd, Zelenodolsk | 8.4.1983 | 30.6.1984 | 25.6.1985 | to East Germany 11.1985 (Halle) | |
| Project 1159T | |||||||
| ÑÊÐ-482 [SKR-482] | 250 | Gorkiy Yd, Zelenodolsk | 10.6.1978 | 12.1.1980 | 30.9.1980 | to Algeria 12.1980 (مراد رئس [Mourad Rais]) | |
| ÑÊÐ-28 [SKR-28] | 251 | Gorkiy Yd, Zelenodolsk | 17.7.1979 | 21.6.1980 | 30.12.1980 | to Cuba 9.1981 (Mariel) | |
| ÑÊÐ-35 [SKR-35] | 252 | Gorkiy Yd, Zelenodolsk | 11.6.1980 | 30.4.1981 | 30.11.1981 | to Algeria 3.1982 (رئس كلش [Rais Kellich]) | |
| ÑÊÐ-471 [SKR-471] | 253 | Gorkiy Yd, Zelenodolsk | 24.4.1981 | 31.7.1982 | 17.8.1983 | to Cuba 2.1984 (356) | |
| ÑÊÐ-129 [SKR-129] | 254 | Gorkiy Yd, Zelenodolsk | 7.7.1982 | 11.11.1983 | 30.8.1984 | to Algeria 1.1985 (رئس قرف [Rais Korfu]) | |
| ÑÊÐ-451 [SKR-451] | 257 | Gorkiy Yd, Zelenodolsk | 6.5.1986 | 3.5.1987 | 25.12.1987 | to Cuba 4.1988 (Moncada) | |
| Project 1159TR | |||||||
| ÑÊÐ-201 [SKR-201] | 255 | Gorkiy Yd, Zelenodolsk | 22.9.1982 | 27.4.1985 | 30.12.1985 | to Lybia 6.1986 (الهاني [Al Hani]) | |
| ÑÊÐ-195 [SKR-195] | 256 | Gorkiy Yd, Zelenodolsk | 18.4.1985 | 27.4.1986 | 25.12.1986 | to Lybia 10.1987 (القيردبا [Al Kyrdabian]) | |
|
Displacement standard, t |
pr. 1159: 1440 pr. 1159T: 1520 pr. 1159TR: 1550 |
|
Displacement normal, t |
pr. 1159: 1660 pr. 1159T: 1673 pr. 1159TR: 1705 |
|
Length, m |
96.5 |
|
Breadth, m |
12.6 |
|
Draught, m |
pr. 1159: 3.20 hull 5.57 max pr. 1159T: 3.32 hull 5.74 max pr. 1159TR: 3.28 hull 5.39 max |
|
No of shafts |
3 |
|
Machinery |
pr. 1159, 1159T: 1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts) pr. 1159TR: 1 M8V6 gas turbine (central shaft) + 2 68B-6 diesels (outer shafts) |
|
Power, h. p. |
20000 + 16000 = 36000 |
|
Max speed, kts |
pr. 1159: 29.7 pr. 1159T: 29 pr. 1159TR: 28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 1159: 4500 (14) pr. 1159T: 4000(14) pr. 1159TR: 3800(14) |
|
Armament |
pr. 1159, 1159T: 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines pr. 1159TR: 2 x 2 P-20M Termit SSM (4 P-20M), 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 4 - 400 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
|
Sensors |
MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
|
Complement |
pr. 1159, 1159T: 108 pr. 1159TR: 112 |
Project history: Small frigates built for export. Only Delfin was retained in the Soviet Navy for training of foreign crews and demonstration.
Modernizations: None.
Naval service: No significant events.

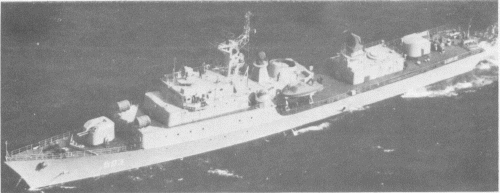

Delfin 1979
