ASTRAKHAN' large gun ships (project 21630) (2006 - 2012)
Astrakhan' 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Астрахань [Astrakhan'] | 017 | 701 | Almaz, St. Petersburg | 30.1.2004 | 7.10.2005 | 1.9.2006 | in service (2019) |
| Волгодонск [Volgodonsk] (ex-Каспийск [Kaspiysk]) | 161 | 702 | Almaz, St. Petersburg | 25.2.2005 | 6.5.2011 | 20.12.2011 | in service (2019) |
| Махачкала [Makhachkala] | 020 | 703 | Almaz, St. Petersburg | 24.3.2006 | 27.4.2012 | 4.12.2012 | in service (2019) |
|
Displacement standard, t |
500 |
|
Displacement full, t |
550 |
|
Length, m |
61.8 |
|
Breadth, m |
10.3 |
|
Draught, m |
3.00 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 M507D diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(14) |
|
Armament |
1 x 6 Gibka SAM (12 Igla-1M), 1 x 1 - 100/59 A-190-01, 2 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89, 1 x 40 - 122 Grad-M rocket launcher |
|
Sensors |
5P-26M Pozitiv-M, MR-231, 5P-10-03 Laska radars, 2x PK-10 Smelyy decoy launchers |
|
Complement |
48 |
Project history: Buyan code name. Intended for coastal operations including fisheries and EEZ patrol. Additional planned units of the class were cancelled in favor of missile-armed Buyan-M.
Modernizations: None.
Naval service: No significant events.

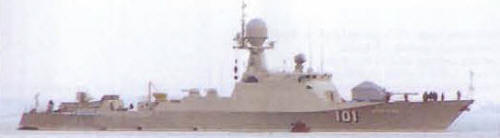

Astrakhan' Dmitriy Babichev, 2006
