ADMIRAL FLOTA SOVETSKOGO SOYUZA GORSHKOV frigates (project 22350) (2018-)

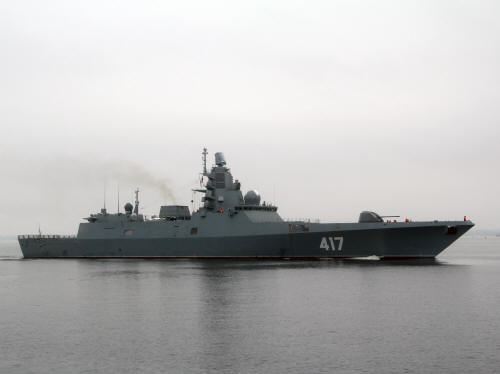

Admiral Flota Sovetskogo Soyuza Gorshkov 2018
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Адмирал Флота Советского Союза Горшков [Admiral Flota Sovetskogo Soyuza Gorshkov] | 417 | 921 | Severnaya verf', St. Petersburg | 1.2.2006 | 29.10.2010 | 28.7.2018 | in service (2019) |
| Адмирал Флота Касатонов [Admiral Flota Kasatonov] | 922 | Severnaya verf', St. Petersburg | 26.11.2009 | 12.12.2014 | 2019 | building (2019) | |
| Адмирал Головко [Admiral Golovko] | 923 | Severnaya verf', St. Petersburg | 1.2.2012 | 2019 | 2021 | building (2019) | |
| Адмирал Флота Советского Союза Исаков [Admiral Flota Sovetskogo Soyuza Isakov] | 924 | Severnaya verf', St. Petersburg | 14.11.2013 | 2020 | 2022 | building (2019) | |
| Адмирал Амелько [Admiral Amel'ko] | 925 | Severnaya verf', St. Petersburg | 23.4.2019 | 2023 | 2025 | building (2019) | |
| Адмирал Чичагов [Admiral Chichagov] | 926 | Severnaya verf', St. Petersburg | 23.4.2019 | 2023 | 2025 | building (2019) | |
| 927 | Severnaya verf', St. Petersburg | 2020 | 2024 | 2026 | planned (2019) | ||
| 928 | Severnaya verf', St. Petersburg | 2020 | 2024 | 2026 | planned (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
4550 |
|
Length, m |
135.0 |
|
Breadth, m |
16.4 |
|
Draught, m |
4.50 |
|
No of shafts |
2 |
|
Machinery |
CODAG M55R: 2 10D49 cruising diesels + 2 M90FR/DA91 boost gas turbines |
|
Power, h. p. |
10400 + 55000 = 65400 |
|
Max speed, kts |
29 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4000(14) |
|
Armament |
2 x 8 Kalibr-NK CruM/SSM/ASuM / Oniks SSM (VLS, 16 3M14/3M54/91RT2/3M55), 4 x 8 Redut SAM (VLS, 32 9M96), 1 x 1 - 130/70 A-192M Armat, 2 x 12 - 30/80 3R99 Palash, 2 x 1 - 14.5/89, 2 x 4 - 330 Paket-NK TT, 1 helicopter (Ka-27) |
|
Sensors |
5P-20K Monument/Poliment, 34K1 Monolit, 5P-27 Furke-4, MR-231-2, 5P-10 Puma radars, MTK-201M E/O detector, Zaria-3.3, Minotavr-ISPN sonars, TK-28 ECM suite, Grach E/O interference system, 2x KT-308, 8x KT-216 decoy launchers (Prosvet-M system), Sigma-22350 CCS |
|
Complement |
210 |
Project history: New design of large multipurpose surface combatant, armed with hypersonic SSM (Oniks), supersonic SSM (Kalibr 3M54), cruise missiles (Kalibr 3M14), anti-submarine missiles (Kalibr-NK 91RT2) and new Redut-Poliment SAM system. Commission of the first ship of the class was delayed due to problems with Redut-Poliment, and this time (February 2017) Admiral Gorshkov is planned to be commissioned in July 2017.
Modernizations: None.
Naval service: No significant events.
Admiral Flota Sovetskogo Soyuza Gorshkov 2014
