IVAN PAPANIN patrol ships (project 23550)
Ivan Papanin

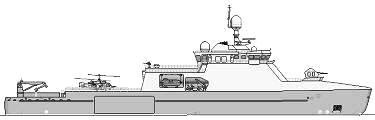

drawing from www.shipbucket.com
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Иван Папанин [Ivan Papanin] | 02460 | Admiralteyskiye verfi, St. Petersburg | 19.4.2017 | 2019 | 2023 | building (2019) | |
| Николай Зубов [Nikolay Zubov] | Admiralteyskiye verfi, St. Petersburg | 2020 | 2021 | 2024 | planned (2019) |
|
Displacement standard, t |
6800 |
|
Displacement full, t |
8500 |
|
Length, m |
114.0 |
|
Breadth, m |
18.0 |
|
Draught, m |
6.00 hull |
|
No of shafts |
2 azimutal propulsors |
|
Machinery |
diesel-generators, 2 electric motors |
|
Power, h. p. |
8160 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6000(14) |
|
Armament |
2 x 4 Kalibr-NK CruM/SSM (8 3M14/3M54), 1 x 1 - 100/59 A-190-01, 1 helicopter (Ka-27), pr. 03160 boats |
|
Sensors |
MR-352 Pozitiv, nav. radars |
|
Complement |
50 + 50 passengers or marines |
Project history: Multipurpose icebreaking patrol ship for the Arctic zone of the project 23550 will be completely new design combines towing, icebreaking and patrol abilities. Ship will can operate from tropics to arctic, breaking up to 1.5m-thick ice. First two ships were ordered 4.5.2016.
Modernizations: None.
Naval service: None.
