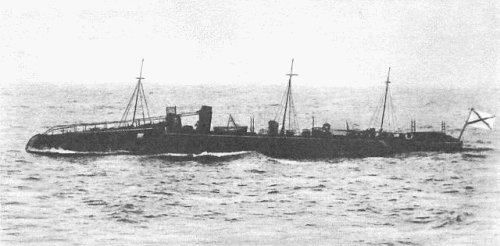

Vyborg 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Âûáîðã [Vyborg] (ex-¹7), 4.1895- ¹102 | 233 | Thompson, Glasgow, UK | 10/1885 | 6.7.1886 | 10/1886 | stricken 1.1910 |
|
Displacement normal, t |
125 |
|
Displacement full, t |
150 |
|
Length, m |
43.4 pp 45.1 oa |
|
Breadth, m |
5.18 |
|
Draught, m |
2.13 max |
|
No of shafts |
2 |
|
Machinery |
2 VC, 2 locomotive boilers |
|
Power, h. p. |
1300 |
|
Max speed, kts |
20 |
|
Fuel, t |
coal 40 |
| Endurance, nm(kts) | 1200(10) |
|
Armament |
2 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow, 4) |
|
Complement |
24 |
Project history: Rounded ram bow, turtle deck forward, three masts and two funnels abreast. Balanced rudder fitted. Two fixed bow TT.
Modernizations: 1893: boilers were converted to oil fuel.
Naval service: No significant events.
No102
Many thanks to Wolfgang Stöhr for additional information on this page.
