Ukrayna 1914
Altfater 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Украйна [Ukrayna], 6.1920- Карл Маркс [Karl Marx], 8.1920- Украйна [Ukrayna], 12.1922- Маркин [Markin], 3.1923- Украйна [Ukrayna], 2.1924- Бакинский Рабочий [Bakinskiy Rabochiy] | Lange & Sohn, Riga | 1/1904 | 4.10.1904 | 4.1905 | gunboat 8.1926, TS 7.1949, sunk as target 7.1961 | ||
| Войсковой [Voyskovoy], 6.1920- Фридрих Энгельс [Fridrikh Engels], 8.1920- Войсковой [Voyskovoy], 3.1923- Маркин [Markin] | Lange & Sohn, Riga | 1904 | 26.11.1904 | 6.1905 | gunboat 8.1926, TS 7.1949, stricken 6.1958 | ||
| Трухменец [Trukhmenets], 10.1908- Туркменец-Ставропольский [Turkmenets-Stavropolskiy], 6.1920- Мирза Кучук [Mirza Kuchuk], 7.1920- Туркменец-Ставропольский [Turkmenets-Stavropolskiy], 12.1922- Альтфатер [Altfater], 5.1945- Советский Дагестан [Sovetskiy Dagestan], 7.1949- 3-й ДОСААФ (3-y DOSAAF) | Lange & Sohn, Riga | 9.1904 | 18.2.1905 | 6.1905 | gunboat 8.1926, TS 7.1949, stricken 7.1962 | ||
| Казанец [Kazanets] | Lange & Sohn, Riga | 1904 | 11.5.1905 | 5.1906 | sunk 28.10.1916 | ||
| Стерегущий [Steregushchiy] | Lange & Sohn, Riga | 8.1904 | 4.7.1905 | 6/1906 | stricken 11.1925 | ||
| Страшный [Strashnyy] | Lange & Sohn, Riga | 1904 | 5.1.1906 | 7.1906 | stricken 11.1925 | ||
| Донской Казак [Donskoy Kazak] | Lange & Sohn, Riga | 1905 | 10.2.1906 | Summer 1906 | stricken 11.1925 | ||
| Забайкалец [Zabaykalets] | Lange & Sohn, Riga | 1905 | 27.4.1906 | Spring 1907 | stricken 11.1925 |
|
Displacement normal, t |
730 |
|
Displacement full, t |
880 |
|
Length, m |
73.2 |
|
Breadth, m |
7.24 |
|
Draught, m |
3.35 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 Normand boilers |
|
Power, h. p. |
7000 |
|
Max speed, kts |
26 |
|
Fuel, t |
coal 134 |
| Endurance, nm(kts) | 1100(12) |
|
Armament |
Ukrayna, Voyskovoy, Trukhmenets: 2 x 1 - 75/48 Canet, 4 x 1 - 57/50 Hotchkiss, 2 x 1 - 7.6/94, 1 x 2 - 381 TT, 1 x 1 - 381 TT, 25 mines Kazanets, Steregushchiy, Strashnyy: 2 x 1 - 75/48 Canet, 4 x 1 - 57/50 Hotchkiss, 4 x 1 - 7.6/94, 2 x 1 - 450 TT, 16 mines Donskoy Kazak, Zabaykalets: 2 x 1 - 75/48 Canet, 4 x 1- 57/50 Hotchkiss, 2 x 1 - 7.6/94, 2 x 1 - 450 TT, 16 mines |
|
Complement |
88 |
Project history: Built under the project of Vulcan. They had bad seagoing capacities and low endurance. Rated as torpedo cruisers, since September, 1907 as destroyers.
Modernizations: 1910, Ukrayna, Voyskovoy, Turkmenets-Stavropolskiy: - 2 x 1 - 75/48, 4 x 1 - 57/50, 1 x 2 - 381 TT, 1 x 1 - 381 TT; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss, 2 x 1 - 7.6/94, 2 x 1 - 450 TT
1910, Kazanets, Steregushchiy: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss
1910, Strashnyy: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60
1910, Donskoy Kazak, Zabaykalets: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss, 2 x 1 - 7.6/94
1916, Ukrayna, Voyskovoy, Turkmenets-Stavropolskiy, Steregushchiy, Donskoy Kazak: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60, 1 x 1 - 40/39 Vickers
1916, Strashnyy: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss
1916, Zabaykalets: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60
1927, Markin, Altfater; 1932, Bakinskiy Rabochiy: - 1 x 1 - 40/39, 1 x 1 - 37/20, 2 x 1 - 450 TT; + 1 x 1 - 76/28 8K, 1 x 1 - 7.6/94
1942, Bakinskiy Rabochiy, Markin, Altfater: - 1 x 1 - 76/28, 1 x 1 - 7.6/94; + 2 x 1 - 45/43 21K, 2 x 1 - 37/63 70K, 4 x 1 - 12.7/79
1/1946, Bakinskiy Rabochiy, Markin, Altfater: 3 x 1 - 102/60, 2 x 1 - 45/46 21K, 2 x 1 - 37/73 70K, 4 x 1 - 12.7/79, 2 x 1 - 7.6/94, 25 mines
Naval service: Kazanets was torpedoed by German submarine UC27 and sank at island Vormsi (Gulf of Finland) 28.10.1916. Steregushchiy, Strashny, Donskoy Kazak and Zabaykalets in 1918 because of bad technical condition were laid up.

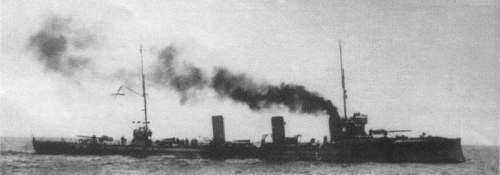

Zabaykalets

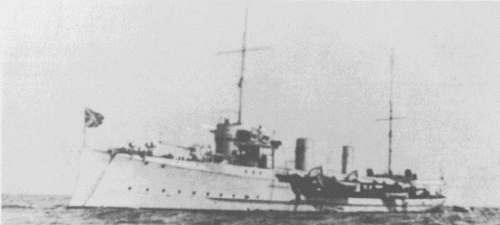

Voyskovoy 1913

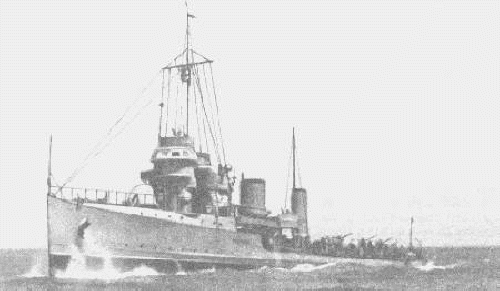

Markin
