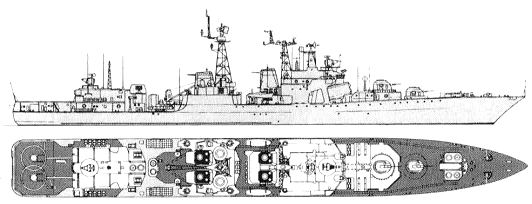

UDALOY large ASW ships (project 1155) (1980 - 1991)

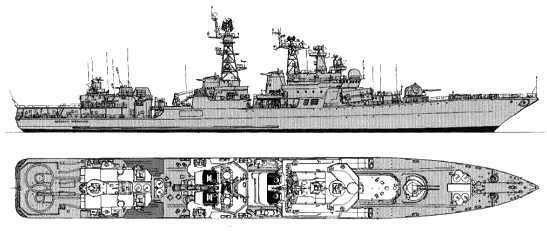

ADMIRAL CHABANENKO large ASW ship (project 1155.1) (1999)

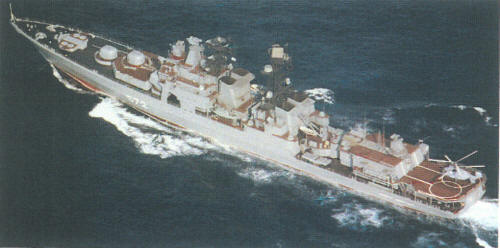

Marshal Vasilevskiy 2000

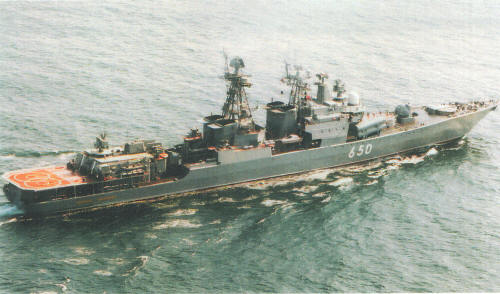

Admiral Chabanenko 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 1155 | |||||||
| Удалой [Udaloy] | 111 | Yantar, Kaliningrad | 23.7.1977 | 5.2.1980 | 31.12.1980 | stricken 8.1997 | |
| Адмирал Захаров [Admiral Zakharov] | 112 | Yantar, Kaliningrad | 16.10.1981 | 4.11.1982 | 30.12.1983 | fire 17.2.1991 | |
| Адмирал Спиридонов [Admiral Spiridonov] | 113 | Yantar, Kaliningrad | 11.4.1982 | 28.4.1984 | 30.12.1984 | stricken 7.2001 | |
| Маршал Шапошников [Marshal Shaposhnikov] | 543 | 114 | Yantar, Kaliningrad | 25.5.1983 | 27.12.1984 | 30.12.1985 | in service (2019) |
| Симферополь [Simferopol], 12.1995- Североморск [Severomorsk] | 619 | 115 | Yantar, Kaliningrad | 12.6.1984 | 24.12.1985 | 30.12.1987 | in service (2019) |
| Адмирал Виноградов [Admiral Vinogradov] | 572 | 116 | Yantar, Kaliningrad | 5.2.1986 | 4.6.1987 | 30.12.1988 | in service (2019) |
| Адмирал Харламов [Admiral Kharlamov] | 678 | 117 | Yantar, Kaliningrad | 7.8.1986 | 29.6.1988 | 30.12.1989 | in reserve (2019) |
| Адмирал Пантелеев [Admiral Panteleev] | 548 | 118 | Yantar, Kaliningrad | 28.1.1988 | 7.2.1990 | 19.12.1991 | in service (2019) |
| Вице-адмирал Кулаков [Vitse-admiral Kulakov] | 626 | 731 | Zhdanov Yd, Leningrad | 4.11.1977 | 16.5.1980 | 29.12.1981 | in service (2019) |
| Маршал Василевский [Marshal Vasilevskiy] | 732 | Zhdanov Yd, Leningrad | 22.4.1979 | 29.12.1981 | 8.12.1983 | stricken 2.2007 | |
| Адмирал Трибуц [Admiral Tributs] | 564 | 733 | Zhdanov Yd, Leningrad | 19.4.1980 | 26.3.1983 | 30.12.1985 | in service (2019) |
| Адмирал Левченко [Admiral Levchenko] (ex-Хабаровск [Khabarovsk]) | 605 | 734 | Zhdanov Yd, Leningrad | 27.1.1982 | 21.2.1985 | 30.9.1988 | in service (2019) |
| Project 11551 | |||||||
| Адмирал Чабаненко [Admiral Chabanenko] | 650 | 121 | Yantar, Kaliningrad | 28.2.1989 | 16.6.1994 | 28.1.1999 | in service (2019) |
| Адмирал Басистый [Admiral Basistyy] | 122 | Yantar, Kaliningrad | 1991 | --- | --- | cancelled 1994 | |
| Адмирал Кучеров [Admiral Kucherov] | 735 | Northern Yd, St. Petersburg | 1991 | --- | --- | cancelled 1993 | |
| Data variant | pr. 1155 |
|
Displacement standard, t |
6840 |
|
Displacement full, t |
7570 |
|
Length, m |
163.0 |
|
Breadth, m |
19.0 |
|
Draught, m |
5.20 hull 7.20 max |
|
No of shafts |
2 |
|
Machinery |
2 M-9 gas turbine units (each consisted of one M-62 cruising and M-8KF boost turbines) |
|
Power, h. p. |
17000 + 45000 = 62000 |
|
Max speed, kts |
29.5 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4000(18) |
|
Armament |
111, 731: 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27) 112: 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27) 113, 114, 732, 733: 4 x 1 Kinzhal SAM VLS (32 9M330), 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27) 115-118, 734: 2 x 4 URK-5 Rastrub-B SSM/ASuM (8 85RU), 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27) |
|
Electronic equipment |
111, 731: MR-320 Topaz, MR-320V Topaz-V, MR-145 Lev-218-100, 2x MR-123 Vympel-A, Volga radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS 112: MR-760 Fregat-MA, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS 113, 114, 732, 733: MR-760 Fregat-MA, 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS 115-117, 734: MR-760 Fregat-MA, Podkat, Musson-U-1155, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 8x PK-10 Smely decoy RLs, MVU-211 Lesorub-1155 CCS 118: MR-760 Fregat-MA, Podkat, Musson-U-1155, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 4x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 8x PK-10 Smely decoy RLs, MVU-211 Lesorub-1155 CCS |
|
Complement |
293 |
| Data variant | pr. 11551 |
|
Displacement standard, t |
7640 |
|
Displacement full, t |
8320 |
|
Length, m |
162.9 |
|
Breadth, m |
19.0 |
|
Draught, m |
5.10 hull 7.80 max |
|
No of shafts |
2 |
|
Machinery |
2 M-9 gas turbine units (each consisted of one cruising and M-8KF boost turbines) |
|
Power, h. p. |
27000 + 45000 = 72000 |
|
Max speed, kts |
30.1 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
3327(18) |
|
Armament |
2 x 4 Moskit-M SSM (8 P-105 (3M82)), 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (64 9M311), 2 x 4 URPK-6 Vodopad-NK ASuM (18 83R, 84R, torpedoes), 1 x 2 - 130/70 AK-130, 2 x 10 RBU-12000 RKPTZ-1 Udav-1 ASWRL, 26 mines, 2 helicopters (Ka-27) |
|
Electronic equipment |
MR-750 Fregat-MA, MR-350 Podkat, 2x 3R-95, MR-145 Lev-218, 2x MR-212/201-1 Vaygach-U radars, Zvezda-M2 sonar suite, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 10x PK-10 Smely decoy RLs, MVU-211 Lesorub-11551 CCS |
|
Complement |
405 |
Project history: These ships are in effect Soviet equivalents of the US Spruance. They are designed to act as ASW flotilla leaders, presumably working with frigates. In effect they are Project 1134B successors with paired helicopters aft and without area defence missiles (their Kinzhal SAMs are, in effect, Osa successors).
The new Kinzhal apparently encountered problems. As of 1992, the first two ships still lacked both missile launchers and directors. The third had launchers but no directors. The fourth. Admiral Zakharov, was the first to have the full system, including two directors (one of which was later removed for titling to another ship). The next two ships had only single directors; the first to retain both directors was Simferopol.
Later ships were ordered to a modified 1155.1 design, with a single 130mm mount forward, an RBU-12000, two Kortik CIWS, and two quadruple Moskit SSM mounts.
Planned modernization of Marshal Shaposhnikov will include installing of 2 quadruple canisters for Uran SSM and replacing MR-123 Vympel-2 radars by MR-123-02/3 Bagira, MR-760 Fregat-MA by MR-710 Fregat-M, older ECM equipment by TK-25-2 ECM suite and installing of new 5P-30N2 Fregat-N2 radar.
Modernizations: 1991, Admiral Tributs: - 1 MR-2122/201-1 Vaygach-U radar; + 4 x 1 Kinzhal SAM VLS (32 9M330), MR-350A Podkat, 3R-95, MR-212/201 Nayada-5 radars, 2x MP-401 Start ECM suites
1992, Admiral Vinogradov, Admiral Tributs: + 4 x 2 - 12.7/79 (temporarily, later removed)
2000, Severomorsk: + 2x MP-401 Start ECM suites
2009, Admiral Tributs: -2x MR-123 Vympel-A radars; + 2x MR-123-02/3 Bagira radars
2010, Vitse-admiral Kulakov: - MR-320 Topaz, MR-320V Topaz-V, Volga radars; + 4 x 1 Kinzhal SAM VLS (32 9M330), 1 x 6 Igla SAM (24 Igla), 5P-30N Fregat-N, 5P-30N2 Fregat-N2, 3R-95, Pal-N radars, Spektr-F laser detector
2013, Admiral Vinogradov, Severomorsk: - 1x MR-123 Vympel-A radar; + 1x MR-123-02/3 Bagira radar
2013, Admiral Levchenko: + MR-231-1 radar
2014, Admiral Tributs: - MR-145 Lev-218-100, 1x MR-212/201 Vaygach-U, MR-212/201 Nayada-5 radars, Lesorub-1155 CCS; + MR-123-02/3M Bagira-M, 2x MR-231 radars, Sigma CCS
2015, Admiral Levchenko: - MR-231-1 radar
2015, Admiral Vinogradov, Admiral Levchenko, Marshal Shaposhnikov, Severomorsk: + MR-231-3 radar
2016, Admiral Chabanenko: + 5P-30N Fregat-N radar
2018, Marshal Shaposhnikov: - MR-760 Fregat-MA, 2x MR-123 Vympel-A radars; + 2 x 4 Uran SSM (8 3M24), MR-710 Fregat-M, 5P-30N2 FregatN2, 2x MR-123-02/3 Bagira radars, TK-25-2 ECM suite
Naval service: Admiral Zakharov suffered several damage during a fire 17.2.1991, she was stricken in July 1994 and scrapped.
Admiral Vinogradov 2001
Admiral Chabanenko 2002
