T35 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Примерный [Primernyy] (ex-T33) | 1515 | Schichau, Elbing, Germany | 1.1943 | 4.9.1943 | 6.1944 // 1.1946 | accommodation ship 11.1954 |
|
Displacement standard, t |
1294 |
|
Displacement full, t |
1754 |
|
Length, m |
97.0 wl 102.5 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
2.66 normal 3.22 max |
|
No of shafts |
2 |
|
Machinery |
2 sets Wagner geared steam turbines, 4 Wagner boilers |
|
Power, h. p. |
29000 |
|
Max speed, kts |
32.5 |
|
Fuel, t |
oil 374 |
| Endurance, nm(kts) | 5000(19) |
|
Armament |
4 x 1 - 105/45 SK C/32, 2 x 2 - 37/69 FlaK M/42,1 x 4 - 20/65 C/38, 5 x 1 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines |
|
Electronic equipment |
FuMO 21, FuMO 63 radars, S-Gerät sonar, GHG hydrophone, FuMB3 Bali, FuMB 4 Sumatra ECM suites |
|
Complement |
206 |
Project history: Former German torpedo boat of 1939 type transferred by reparations.
Modernizations: None.
Naval service: No significant events.

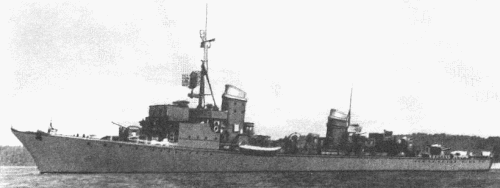

Primernyy
Many thanks to Wolfgang Stöhr for additional information on this page.
