SOVIET NAVY (USSR)

TORPEDO SHIPS

OPYTNYY destroyer (project 45) (1941)

Opytnyy 1941

Name No Yard No Builder Laid down Launched Comp Fate
Опытный [Opytnyy] (ex-Серго Орджоникидзе [Sergo Ordzhonikidze])   500 190 Zhdanov Yd, Leningrad 6.1935 8.12.1936 9.1941 stricken 2.1953



Displacement standard, t

1572

Displacement full, t

2016

Length, m

113.5

Breadth, m

10.2

Draught, m

3.40 mean 4.20 max

No of shafts

2

Machinery

2 geared steam turbines sets, 4 Ramsin boilers

Power, h. p.

70000

Max speed, kts

42

Fuel, t

oil 372

Endurance, nm(kts) 1370(18)

Armament

3 x 1 - 130/50 B-13, 4 x 1 - 45/43 21K, 3 x 1 - 37/63 70K, 1 x 2 - 12.7/90, 2 x 1 - 12.7/79, 2 x 4 - 533 TT, 2 DCR (10), 60 mines

Electronic equipment Mars hydophone

Complement

262

Project history: Designed since 1934 to receive destroyer in the dimensions of project 7, but with 45kts speed and the endurance increased on 20%. It was supposed to achieve it at the expense of fitting of supercharged Ramsin boilers and wide application of welding. On armament structure originally she would repeat project 7, but subsequently it has been decided to install 3 twin 130mm B-31 mounts which designing only was conducted. Because of the arisen overload the designed speed should be lowered to 42kts, and AA armament was limited by 2 45mm/46 guns. The electric equipment, for the first time in Soviet fleet, should work on AC. For boilers control in Germany the automatic system was ordered, but it have appeared to the disabled. Mooring trials (12/1939-8/1940) were conducted at manual boiler control.
    27.11.1940 Opytny made the first trial sea voyage. Nevertheless, to the beginning of Great Patriotic War machinery was not in the efficient condition. The designed armament also was absent, and destroyer received 3 single 130mm guns. On conducted under limited program trials Opytny could only for short term reach 35kts, but 17.8.1941 she was commissioned.

Modernizations: 10.1941: - 3 x 1 - 130/50.

6/1942: + 3 x 1 - 130/50 B-13

Naval service: In March, 1944 Opytny was laid up; 20.6.1945 she was deduced from battle structure and reclassified to test ship. After war some attempts to complete the ship were undertaken, but finally in 1955 she was broken up.

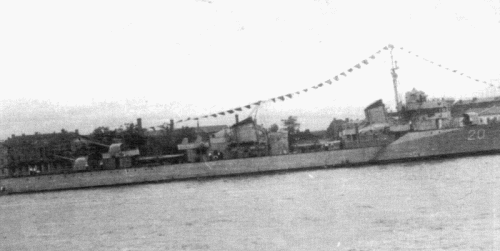

Opytnyy 1949
