SOVIET NAVY (USSR)

TORPEDO SHIPS

OGNEVOY destroyers (projects 30 and 30K) (1945-1950)

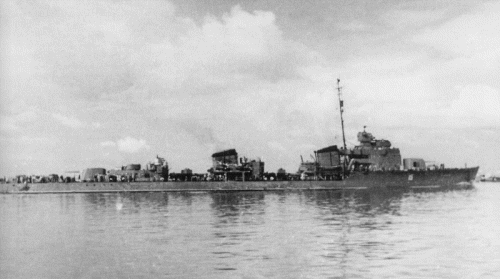

Ognevoy 1950

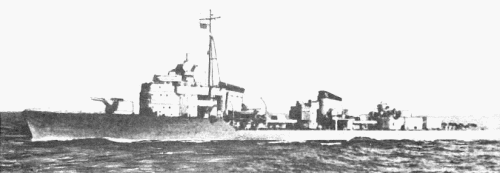

Vynoslivyy 1950

Name No Yard No Builder Laid down Launched Comp Fate
project 30
Огневой [Ognevoy] (ex-Опасный [Opasnyy])   1056 200 61 Kommunar Yd, Nikolayev // Poti port wks 20.11.1939 12.11.1940 5.4.1945 target 2.1956
proejct 30K and incomplete ships
Осмотрительный [Osmotritelnyy]   103 402 Yd, Molotovsk 5.5.1940 24.8.1944 29.9.1947 accommodation ship 4.1958
Сталин [Stalin] (ex-Охотник [Okhotnik])   104 402 Yd, Molotovsk 25.6.1940 19.7.1947 29.9.1948 stricken 4.1958
Жаркий [Zharkiy] (ex-Опустошительный [Opustoshitelnyy])   120 402 Yd, Molotovsk 25.3.1941 --- --- suspended 19.9.1941
Живой [Zhivoy] (ex-Оснащённый [Osnashchonnyy])   121 402 Yd, Molotovsk 25.3.1941 --- --- suspended 19.9.1941
Жуткий [Zhutkiy] (ex-Озабоченный [Ozabochennyy])   122 402 Yd, Molotovsk 1941 --- --- cancelled 9.1941
Жгучий [Zhguchiy] (ex-Обжигающий [Obzhigayushchiy])   130 402 Yd, Molotovsk 1941 --- --- cancelled 9.1941
Жестокий [Zhestokiy] (ex-Охраняющий [Okhranyayushchiy])   131 402 Yd, Molotovsk 1941 --- --- cancelled 9.1941
Внушительный [Vnushitelnyy]   3 199 Yd, Komsomolsk-on-Amur 16.10.1940 14.5.1947 29.12.1947 target 4.1958
Выносливый [Vynoslivyy]   4 199 Yd, Komsomolsk-on-Amur 29.10.1940 17.11.1947 5.12.1948 target 2.1959
Властный [Vlastnyy]   5 199 Yd, Komsomolsk-on-Amur 29.10.1940 15.6.1948 27.12.1948 target 2.1959
Ведущий [Vedushchiy]   10 199 Yd, Komsomolsk-on-Amur 1941 --- --- cancelled 9.1941
Внезапный [Vnezapnyy]   11 199 Yd, Komsomolsk-on-Amur 1941 --- --- cancelled 9.1941
Отличный [Otlichnyy]   538 190 Zhdanov Yd, Leningrad // 189 Ordzhonikidze Yd, Leningrad 2.12.1939 7.5.1947 31.10.1948 target 2.1960
Образцовый [Obraztsovyy]   539 190 Zhdanov Yd, Leningrad 2.12.1939 30.10.1947 29.9.1949 target 2.1959
Отважный [Otvazhnyy]   540 190 Zhdanov Yd, Leningrad // 194 Marti Yd, Leningrad 30.12.1939 2.1.1948 2.3.1950 stricken 3.1958
Одарённый [Odaryonnyy]   541 190 Zhdanov Yd, Leningrad // 194 Marti Yd, Leningrad 30.12.1939 27.12.1948 28.6.1950 training hulk 4.1958
Огненный [Ognennyy]   547 190 Zhdanov Yd, Leningrad 30.6.1940 --- --- suspended 10.9.1941
Ожесточённый [Ozhestochonnyy]   548 190 Zhdanov Yd, Leningrad 27.7.1940 --- --- suspended 20.7.1941
Острый [Ostryy]   549 190 Zhdanov Yd, Leningrad 18.12.1940 --- --- suspended 20.7.1941
Ослепительный [Oslepitelnyy]   550 190 Zhdanov Yd, Leningrad 12.1940 --- --- suspended 20.7.1941
Осторожный [Ostorozhnyy]   557 190 Zhdanov Yd, Leningrad 30.1.1941 --- --- suspended 20.7.1941
Отчётливый [Otchotlivyy]   558 190 Zhdanov Yd, Leningrad 14.2.1941 --- --- suspended 20.7.1941
Озорной [Ozornoy]   1087 200 61 Kommunar Yd, Nikolayev 20.11.1939 25.12.1940 9.1.1949 to Bulgaria 3.1950 (Георги Димитров [Georgi Dimitrov)
Отменный [Otmennyy]   1093 200 61 Kommunar Yd, Nikolayev 30.10.1940 --- --- suspended 20.7.1941
Обученный [Obuchennyy] (ex-Обходной [Obkhodnoy])   1094 200 61 Kommunar Yd, Nikolayev 30.12.1940 --- --- suspended 20.7.1941
Отчаянный [Otchayannyy]   1095 200 61 Kommunar Yd, Nikolayev 30.12.1940 --- --- suspended 20.7.1941
Общительный [Obshchitelnyy] (ex-Отрывистый [Otryvistyy])   1096 200 61 Kommunar Yd, Nikolayev 30.12.1940 --- --- suspended 20.7.1941
Организованный [Organizovannyy] (ex-Опорный [Opornyy]   311 189 Ordzhonikidze Yd, Leningrad 21.3.1941 --- --- suspended 20.7.1941
Отборный [Otbornyy]   312 189 Ordzhonikidze Yd, Leningrad 21.3.1941 --- --- suspended 20.7.1941
Отражающий [Otrazhayushchiy] (ex-Огнедышащий [Ognedyshachiy])   313 189 Ordzhonikidze Yd, Leningrad 19.4.1941 --- --- suspended 20.7.1941



Data variant pr. 30

Displacement standard, t

2240

Displacement full, t

2767

Length, m

115.5

Breadth, m

11.0

Draught, m

4.68

No of shafts

2

Machinery

2 geared steam turbines sets, 4 KV-30 boilers

Power, h. p.

54000

Max speed, kts

37

Fuel, t

oil 778

Endurance, nm(kts)

3060(18)

Armament

as designed: 2 x 2 - 130/50 B-2LM, 1 x 2 - 76/52 39K, 3 x 1 - 37/63 70K, 4 x 1 - 12.7/79, 2 x 3 - 533 TT, 2 DCR (30), 56 mines

Ognevoy: 2 x 2 - 130/50 B-2LM, 1 x 2 - 76/52 39K, 6 x 1- 37/63 70K, 4 x 1 - 12.7/79, 2 x 3 - 533 TT, 2 DCT, 2 DCR (22), 60 mines

Electronic equipment

as designed: UZPN hydrophone

Ognevoy: Giuys-1B radar, Tamir-5N sonar

Complement

293



Data variant pr. 30K

Displacement standard, t

2125

Displacement full, t

2860

Length, m

117.0

Breadth, m

11.0

Draught, m

4.68

No of shafts

2

Machinery

2 geared steam turbines sets, 4 KV-30 boilers

Power, h. p.

54000

Max speed, kts

36.5

Fuel, t

oil 778

Endurance, nm(kts) 3060(18)

Armament

2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 6 x 1- 37/73 70K, 2 x 3 - 533 TT, 2 DCT, 2 DCR (22), 60 mines

Sensors Giuys-1B, Rif-1, Vympel-2, Rym-1 radars, Tamir-5N sonar

Complement

301

Project history: In August, 1937, simultaneously with a revision of building program of project 7 destroyers, the decision on creation of new destroyer was made. Requirement given out 15.11.1937 provided armament consisted from 4 130mm, 2 76mm, 4 37mm guns, 4 7.62mm MGs and 3 triple 533mm TTs; 38kts speed, 4000nm endurance. Ship dimensions and machinery structure corresponded to project 7u. The Basic design was developed in two variants: with single and twin 130mm turrets. Instead of 3 triple 533mm TTs both variants should carry 2 quintuple ones. As a result 27.10.1939 project 30 with twin turrets was approved, however 130mm guns remained single purpose in B-2LM turrets.
    Prior to the beginning of Great Patriotic War 28 ships were laid down from which 5 destroyers were launched. To the war end only Ognevoy was completed and entered in May, 1945 Black Sea Fleet.
    10 more ships were completed in 1947-1950 under modified project 30K with radars and little enhanced AA armament.

Modernizations: None.

Naval service: No significant events.

Ognevoy

Obraztsovyy
