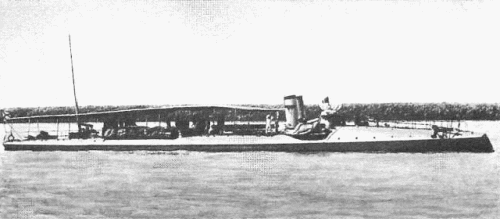

Nargen 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Нарген [Nargen], 8.1893- Усури [Usuri], 1.1898- №203 | Crichton, Abo | 1889 | 15.11.1889 | late 1891 | auxiliary 11.1907 | ||
| Гогланд [Gogland], 8.1893- Сунгари [Sungari], 1.1898- №204 | Crichton, Abo | 1889 | 17.12.1889 | late 1891 | wrecked 30.6.1904 |
|
Displacement normal, t |
140 |
|
Displacement full, t |
153 |
|
Length, m |
47.3 |
|
Breadth, m |
5.00 |
|
Draught, m |
2.64 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 locomotive boilers |
|
Power, h. p. |
Usuri: 2039 Sungari: 1956 |
|
Max speed, kts |
Usuri: 19.5 Sungari: 20.3 |
|
Fuel, t |
coal 30 |
| Endurance, nm(kts) | |
|
Armament |
3 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 2 x 1 - 381 TT |
|
Complement |
21 |
Project history: One fixed bow TT and two trainable.
Modernizations: None.
Naval service: №204 ran ashore 30.6.1904 off Wonsan, damaging a rudder, and was scuttled by own crew.
Nargen
