Kapitan Saken 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Капитан Сакен [Kapitan Saken] | Nikolayev Admiralty | 1886 | 12.5.1889 | 12/1889 | auxiliary 4.1907 |
|
Displacement normal, t |
620 |
|
Displacement full, t |
742 |
|
Length, m |
69.4 pp 71.6 oa |
|
Breadth, m |
7.42 |
|
Draught, m |
3.12 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 6 locomotive boilers |
|
Power, h. p. |
3000 |
|
Max speed, kts |
18.3 |
|
Fuel, t |
coal 97 |
| Endurance, nm(kts) | 1580(10) |
| Armour, mm | deck: 13 |
|
Armament |
6 x 1 - 47/40 Hotchkiss, 4 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 2 x 1 - 381 TT (19 total) |
|
Complement |
102 |
Project history: Development of Leytenant Ilyin.
Ship protection: There was 13mm protective deck.
Modernizations: 1898: boilers were replaced by 6 Belleville
Naval service: No significant events.

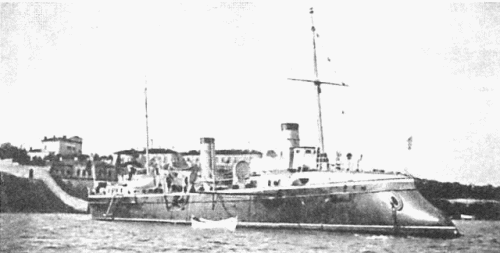

Kapitan Saken
© Ivan Gogin, 2014
