Dago 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Даго [Dago], 4.1895- №118 [No118], 1.1910- Перископ [Periskop], 1921- №15 [No15] | Crichton, Abo | 1891 | 1892 | 1892 | dispatch vessel 1.1910, armed steamship 12.1918, gunboat 2.1919, dispatch vessel 11.1919, minesweeper 1921, stricken 8.1923 | ||
| Котка [Kotka], 4.1895- №256 [No256], 7.1915- Лётчик [Lyotchik], 10.1916- №4 [No4] | Crichton, Abo | 1891 | 1892 | 1892 | dispatch vessel 7.1915, captured by Germany 1.5.1918, re-commissioned 12.1920, stricken 3.1922 | ||
| Кроншлот [Kronshlot], 4.1895- №123 [No123] | Izhora Wks, Kolpino | 1891 | 1892 | 1892 | stricken 10.1909 | ||
| Сескар [Seskar], 4.1895- №124 [No124] | Izhora Wks, Kolpino | 1891 | 1892 | 1892 | stricken 10.1909 |
|
Displacement normal, t |
101 - 105 |
|
Displacement full, t |
|
|
Length, m |
46.5 - 46.8 |
|
Breadth, m |
3.89 - 3.94 |
|
Draught, m |
2.34 - 2.62 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 locomotive boiler |
|
Power, h. p. |
1000 - 1030 |
|
Max speed, kts |
16.2 - 19 |
|
Fuel, t |
coal 15 |
| Endurance, nm(kts) | 450(10) |
|
Armament |
Dago: 2 x 5 - 47/22 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT others: 2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT |
|
Complement |
21 |
Project history: Development of Revel design.
Modernizations: 1909, No256: - 1 - 381 TT, 1 x 1 - 381 TT; + 1 x 1 - 7.6/94, 1 x 1 - 450 TT
1910, Periskop: - 2 x 5 - 47/22, 1 - 381 TT, 1 x 1 - 381 TT; + 1 x 1 - 75/48 Canet, 1 x 1 - 47/40 Hotchkiss, 1 x 1 - 37/20 Hotchkiss
1915, Lyotchik: - 2 x 5 - 37/17, 1 x 1 - 450 TT; + 2 x 1 - 47/40 Hotchkiss, 2 x 1 - 37/20 Hotchkiss
1921, No15: + mechanical minesweeping gear
Naval service: dispatch vessel No4 was captured by German troops, next time captured by British and French troops in November 1918, transferred them to White Army in April 1919, abandoned in November 1920 and commissioned by Red fleet in December.

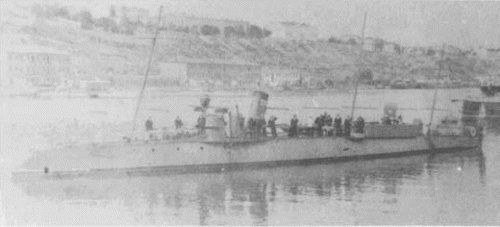

No256
