IMPERIAL RUSSIAN NAVY (RUSSIA)

TORPEDO SHIPS

BORGO torpedo boats (1891)

nearly sister-ship Anapa 1891

Name No Yard No Builder Laid down Launched Comp Fate
Борго [Borgo], 1.1898- №207     Crichton, Abo 1890 1891 1891 collision 1.10.1900
Экенес [Ekenes], 4.1895- №117     Crichton, Abo 1890 1891 1891 stricken 1.1910



Displacement normal, t

106

Displacement full, t

118

Length, m

41.7

Breadth, m

4.47

Draught, m

2.57 max

No of shafts

1

Machinery

1 VTE, 1 locomotive boiler

Power, h. p.

1245

Max speed, kts

20

Fuel, t

coal

Endurance, nm(kts)

Armament

2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT

Complement

21

Project history: Usual single-funneled boat of the Schichau type. One TT was fixed in the bows and one in single training mounting on deck.

Modernizations: None.

Naval service: 207 collided 1.10.1900 with torpedo boat №204  in Yellow Sea.

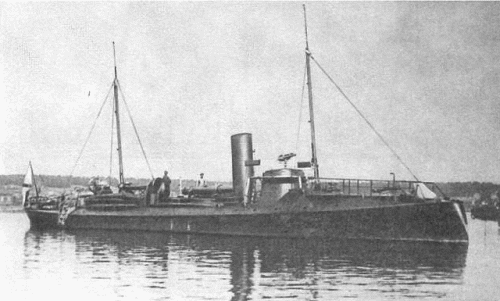

№117
