No214 1911
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ¹214 [No214] | Nevskiy Wks, St. Petersburg | 1901 | 1902 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 | ||
| ¹215 [No215] | Nevskiy Wks, St. Petersburg | 1901 | 1902 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C1) | ||
| ¹216 [No216] | Nevskiy Wks, St. Petersburg | 1901 | 1902 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C2) | ||
| ¹217 [No217] | Nevskiy Wks, St. Petersburg | 1901 | 1902 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C3) | ||
| ¹218 [No218] | Nevskiy Wks, St. Petersburg | 1901 | 1902 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 | ||
| ¹219 [No219] | Crichton, Abo | 10.1901 | 29.4.1903 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C4) | ||
| ¹220 [No220] | Crichton, Abo | 10.1901 | 2.7.1903 | 12.1903 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 | ||
| ¹221 [No221] | 1522 | Crichton, Abo | late 1901 | 30.9.1901 | 2.1903 | foundered 10.3.1905 | |
| ¹222 [No222] | 1523 | Crichton, Abo | 1901 | 15.10.1901 | 9.1902 | minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 | |
| ¹223 [No223] | 1524 | Crichton, Abo | 1901 | 20.11.1901 | 2/1903 | stricken 11.1911 |
|
Displacement normal, t |
152 |
|
Displacement full, t |
|
|
Length, m |
45.1 |
|
Breadth, m |
4.65 |
|
Draught, m |
2.67 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Normand boilers |
|
Power, h. p. |
3700 |
|
Max speed, kts |
29 |
|
Fuel, t |
coal 30 |
| Endurance, nm(kts) | 450(12) |
|
Armament |
2 x 1 - 47/40 Hotchkiss, 1 x 2 - 381 TT |
|
Complement |
28 |
Project history: Built on similarity of French torpedo boats of Cyclone class.
Modernizations: 1914, all survived: - 1 x 2 - 381 TT; + mechanical minesweeping gear
1915, all survived: - minesweeping gear
Naval service: No221 has sunk during a storm in Mediterranean sea 25.2.1904. In days of WWI boats were used as minesweepers and dispatch vessels. 18.7.1915 No218 was mined in Gulf of Bothnia, but remained afloat and in 3 months returned to service. All survived boats were captured by Finnish troops 13.4.1918 at Helsingfors. Later they as obsolete were transferred by Soviet Government to Finland and broken up.

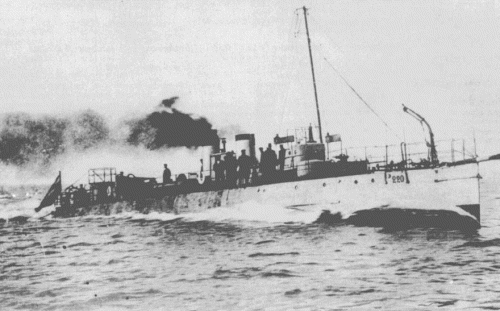

No220
Many thanks to Wolfgang Stöhr for additional information on this page.
