Zabiyaka 1904
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Забияка [Zabiyaka] | 203 | Cramp, Philadelphia, USA | 13.7.1878 | 21.10.1878 | 11.3.1879 | sunk 25.10.1904 |
|
Displacement normal, t |
1236 |
|
Displacement full, t |
|
|
Length, m |
67.0 pp |
|
Breadth, m |
9.10 |
|
Draught, m |
4.00 max |
|
No of shafts |
1 |
|
Machinery |
1 VC, 2 cylindrical boilers |
|
Power, h. p. |
1426 |
|
Max speed, kts |
14.2 |
|
Fuel, t |
coal 320 |
|
Endurance, nm(kts) |
6000(10) |
|
Armament |
2 x 1 - 152/25 obr. 1877, 4 x 1 - 107/17 9pdr obr. 1877, 1 x 1 - 63/17 Baranovski, 4 x 1 - 44/41 Ängström, 6 x 5 - 37/17 Hotchkiss |
|
Complement |
155 |
Project history: Zabiyaka was laid down as merchant vessel, purchased on the stocks and completed as a clipper (sloop by international classification).
Modernizations: 1890s: - 4 x 1 - 44/41; + 4 x 1 - 47/40 Hotchkiss
Naval service: Zabiyaka was sunk on shallow water 25.10.1904 in harbour of Port Arthur by shells of Japanese siege artillery. She was additionally exploded by crew by night 1-2.1.1905 before capitulation of Port Arthur, later salvaged by Japanese and broken up.

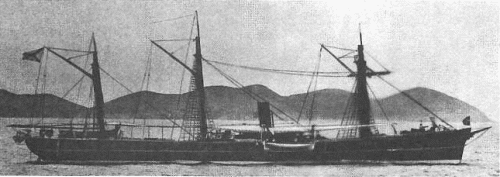

Zabiyaka
Many thanks to Wolfgang Stöhr for additional information on this page.
