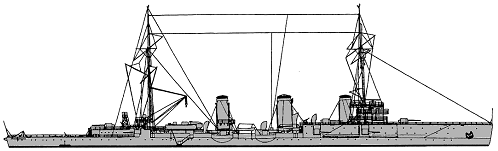

Svetlana as designed in 1913

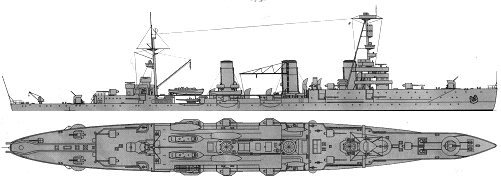

Krasnyy Krym 1940
| Name | No | Builder | Laid down | Launched | Comm | Fate |
| Профинтерн [Profintern] (ex-Светлана [Svetlana]), 10.1939- Красный Крым [Krasnyy Krym] | Russo-Baltic Yd, Revel // Baltic Wks, Petrograd | 24.11.1913 | 11.12.1915 | 1.7.1928 | target 5.1957 | |
| Адмирал Бутаков [Admiral Butakov] | Putilov Yd, St. Petersburg | 29.11.1913 | 5.8.1916 | --- | suspended 1917 | |
| Адмирал Спиридов [Admiral Spiridov] | Putilov Yd, St. Petersburg | 29.11.1913 | 9.9.1916 | --- | completed mercantile 1925 | |
| Адмирал Грейг [Admiral Greyg] | Russo-Baltic Yd, Revel // Baltic Wks, Petrograd | 7.12.1913 | 9.12.1916 | --- | completed mercantile 1926 |
| Data variant | as designed |
|
Displacement normal, t |
6800 |
|
Displacement full, t |
7400 |
|
Length, m |
154.8 wl 158.4 oa |
|
Breadth, m |
15.4 |
|
Draught, m |
5.60 - 5.70 |
|
No of shafts |
4 |
|
Machinery |
Svetlana, Admiral Greyg: 4 Brown-Curtis steam turbines, 13 Yarrow-Vulcan boilers Admiral Butakov, Admiral Spiridov: 4 Parsons steam turbines, 13 Yarrow-Vulcan boilers |
|
Power, h. p. |
50000 |
|
Max speed, kts |
29.5 |
|
Fuel, t |
coal 498 + oil 669 |
| Endurance, nm(kts) | 200(12) |
|
Armour, mm |
belt: 75 - 25, bulkhead: 50, upper belt: 25, decks: 20 + 20, funnel uptakes: 20, CT: 75 sides, 50 roof, shields: 25, ammunition tubes: 25 |
|
Armament |
15 x 1 - 130/53, 4 x 1 - 63/36 Obukhov, 2 - 450 TT (beam, 6), 100 mines |
|
Complement |
630 |
Project history: First turbine-driven cruisers of the Russian fleet,
designed taking into account experience of the Russian-Japanese war.
They were built by two little differing series: Svetlana, Admiral Butakov, Admiral Spiridov and Admiral Greig for Baltic, Admiral Nakhimov, Admiral Lazarev, Admiral Istomin and Admiral Kornilov for Black sea. All 8
ships were laid down prior to the beginning of the First World War, but any of them was completed before revolution
of 1917. 24.12.1920 the program has been accepted, according to which
Svetlana and Admiral Nakhimov it was supposed to complete under original
design.
Black Sea cruisers, according to the
design, differed
by increased displacement (7600t against 6800), dimensions, and also type and structure
of machinery (Parsons turbines and 14 Yarrow boilers instead of 4 Curtis-AEG-Vulkan and 13
Yarrow-Vulkan boilers), in remaining ships were practically identical. Rather
low-freeboard hull with a forecastle and a three-funnel outline profile gave them a certain likeness with
Novik class destroyers. On trials Profintern made 29.5kts at 6800t
displacement and 59200hp power. Chervona Ukraina shown average speed of 29.82kts
and maximum 30.9kts To the beginning of Great Patriotic war
boilers were converted to pure oil-firing, but speed characteristics nevertheless have notably decreased: so, in 1941
speed did not exceed 27.5kts, and in 1944 Krasny Krym made no more than 22kts.
Protection ensured unvulnerability from gunfire of destroyers. The main 75mm
belt reached full ship length and adjoined an upper edge a lower deck. Above it
the upper 25mm belt placed. Upper and lower decks had 20mm thickness. The
protection of the same thickness covered funnel uptakes below deck level.
Deck-casemates arrangement
of artillery and insufficient to measures of the Second World War calibre were a serious lack of the
design.
Ship protection
as designed: Main 75mm belt had 2.1m height and extended at all length except short part
near aft end, closing aft by 50mm bulkhead; aft end of ship was protected by
25mm armour. Upper 25mm belt extended from stem to stern and from main belt to
upper deck. Upper and flat main decks had 20m thickness and connected with upper
edges of main and upper belts.
Ship protection, Profintern: Main 75mm belt had 2.1m height and extended at all length except short part near aft end, closing aft by 50mm bulkhead; aft end of ship was protected by 25mm armour. Upper 25mm belt extended from stem to stern and from main belt to upper deck. Upper and flat main decks had 20m thickness and connected with upper edges of main and upper belts.
| Data variant | Profintern |
|
Displacement standard, t |
6693 |
|
Displacement full, t |
8041 |
|
Length, m |
154.8 wl 158.4 oa |
|
Breadth, m |
15.4 |
|
Draught, m |
6.65 max |
|
No of shafts |
4 |
|
Machinery |
4 Curtis-AEG-Vulcan steam turbines, 13 Yarrow-Vulcan boilers |
|
Power, h. p. |
46300 |
|
Max speed, kts |
29 |
|
Fuel, t |
coal 498 + oil 669 |
| Endurance, nm(kts) | 3350(14) |
|
Armour, mm |
belt: 75 - 25, bulkhead: 50, upper belt: 25, decks: 20 + 20, funnel uptakes: 20, CT: 75 sides, 50 roof, shields: 25, ammunition tubes: 25 |
|
Armament |
15 x 1 - 130/53, 4 x 1 - 75/48 Canet, 3 x 3 - 450 TT, 90 mines, 1 seaplane (Ju 20, MU-2) |
|
Complement |
830 |
Modernizations: early 1930s, Profintern: + 1 x 3 - 450 TT
12/1936, Profintern: boilers were converted to oil burning only (1050 t of oil); - 4 x 1 - 75/48, 4 x 3 - 450 TT; + 3 x 2 - 100/47 OTO 1928, 2 x 3 - 533 TT
1938, Krasnyy Krym: - seaplane; + 4 x 1 - 45/43 21K, 7 x 1 - 12.7/79
1942, Krasnyy Krym: + 10 x 1 - 37/63 70K, 2 x 4 - 12.7/62
7/1944, Krasnyy Krym: - 4 x 1 - 45/43, 3 x 1 - 12.7/79; + 4 x 1 - 37/63 70K
1945, Krasnyy Krym: + type 291 radar
1/1946, Krasny Krym: 15 x 1 - 130/55, 3 x 2 - 100/47 OTO 1928, 14 x 1 - 37/73 70K, 4 x 1 - 12.7/79, 2 x 4 - 12.7/62, 2 x 3 - 533 TT, 90 mines; type 291 radar
Naval service: 8.4.1953 Krasny Krym was reclassified to TS; in 1957 disarmed and 7.5.1957 reformed to test ship OS-20; 11.3.1958 she became accommodation ship PKZ-144 and 7.7.1959 sold for BU.

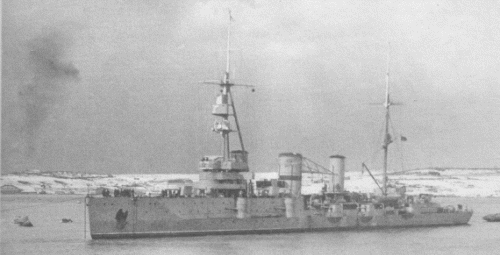

Profintern 1930s
