Rynda 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Витязь [Vityaz'] | Galerny Is, St. Petersburg | 28.8.1883 | 4.11.1884 | spring 1886 | wrecked 10.5.1893 | ||
| Рында [Rynda], 5.1917- Освободитель [Osvoboditel'] | Franko-Russkiy Wks (Galerny Is), St. Petersburg | 25.10.1883 | 30.6.1885 | 1886 | TS 3.1906, dispatch vessel 5.1917, stricken 8.1926 |
|
Displacement normal, t |
3537 |
|
Displacement full, t |
|
|
Length, m |
79.4 |
|
Breadth, m |
13.7 |
|
Draught, m |
5.33 mean |
|
No of shafts |
1 |
|
Machinery |
1 HC, 10 cylindrical boilers |
|
Power, h. p. |
3000 |
|
Max speed, kts |
11.5 |
|
Fuel, t |
coal 500 |
| Endurance, nm(kts) | 2400(10) |
|
Armour, mm |
steel; deck: 38 |
|
Armament |
4 x 1 - 152/25 obr 1877, 4 x 1 - 87/21 obr 1877, 2 x 1 - 47/40 Hotchkiss, 6 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow) |
|
Complement |
396 |
Project history: Steel and iron hulled partly protected cruisers with barque rig, sheathed and coppered.
Ship protection: Protective deck closed machinery only.
Modernizations: 1901, Rynda: - 2 x 1 - 87/21; + 4 x 5 - 37/17 Hotchkiss, 3 - 381 TT
1905, Rynda: armament consisted of 4 x 1 - 75/48 Canet, 4 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.6/94
Naval service: Vityaz` wrecked 10.5.1893 off Lazarev Port (Sea of Japan). Rynda was re-rated to TS in 1906 and sold for BU in May, 1922.

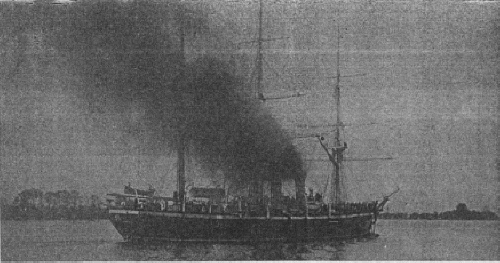

Rynda 1887

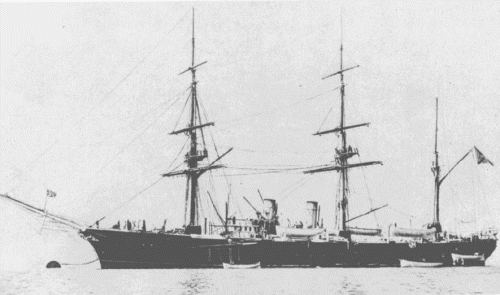

Rynda 1890s
