Knyaz' Pozharskiy 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Князь Пожарский [Knyaz' Pozharskiy] (ex-Пожарский [Pozharskiy]) | Galerniy Is, St. Petersburg | 30.11.1864 | 12.9.1867 | 1869 | TS 3.1906, hulk 10.1909 |
|
Displacement normal, t |
5138 |
|
Displacement full, t |
|
|
Length, m |
83.1 wl |
|
Breadth, m |
14.9 |
|
Draught, m |
7.47 max |
|
No of shafts |
1 |
|
Machinery |
1 HDA, 8 cylindrical boilers |
|
Power, h. p. |
2835 |
|
Max speed, kts |
11.7 |
|
Fuel, t |
coal 600 |
|
Endurance, nm(kts) |
1200(10) |
|
Armour, mm |
wrought iron; belt: 102, battery: 114 |
|
Armament |
8 x 1 - 229/14 obr. 1867, 2 x 1 - 152/23 obr. 1867, 4 x 1 - 87/17 4pdr obr. 1867 |
|
Complement |
495 |
Project history: An iron-hulled, wood-sheathed, central battery ship, the hull being recessed fore and aft of the battery to allow some axial fire. The 229mm guns were in a short battery with the 152mm fore and aft on the upper deck. The Knyaz' Pozharskiy was fully rigged and was said to be a bad seaboat.
Ship protection: The 102mm belt was complete on the waterline, and the ram projected 2.4m.
Modernizations: 1875: - 8 x 1 - 229/14; + 8 x 1 - 203/19 obr. 1867, 4 x 1 - 44/45 Ängström
1890: - 6 x 1 - 203/19, 4 x 1 - 44/45; + 2 x 1 - 63/17 Baranovski, 2 x 1 - 47/40 Hotchkiss, 6 x 5 - 37/17 Hotchkiss
1901: - 2 x 1 - 203/19, 1 x 1 - 152/23; + 2 x 1 - 47/40 Hotchkiss
Naval service: Reclassified as TS in March 1906, converted to hulk in October 1909, sold for BU in April 1911.

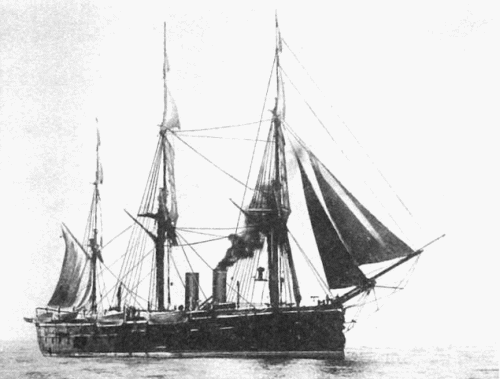

Knyaz' Pozharskiy
© Ivan Gogin, 2014
