Boyarin 1903
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Áîÿðèí [Boyarin] | 212 | Burmeister & Wain, Copenhagen, Denmark | 6.9.1900 | 8.6.1901 | 30.8.1902 | sunk 13.2.1904 |
|
Displacement normal, t |
3200 |
|
Displacement full, t |
3274 |
|
Length, m |
105.2 pp 108.3 wl 108.3 oa |
|
Breadth, m |
12.7 |
|
Draught, m |
4.88 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 16 Belleville boilers |
|
Power, h. p. |
11500 |
|
Max speed, kts |
22 |
|
Fuel, t |
coal 600 |
|
Endurance, nm(kts) |
3000(10) |
| Armour, mm | Nickel steel; deck: 38 with 51mm slopes, ammunition tubes: 25, CT: 76 (Krupp steel) |
|
Armament |
6 x 1 - 120/43 Canet, 1 x 1 - 63/17 Baranovski, 8 x 1 - 47/40 Hotchkiss, 1 x 1 - 37/20 Hotchkiss, 5 - 450 TT (aw, 4 beam, 1 stern) |
|
Complement |
331 |

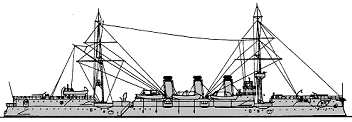

Project history: Very different from the Novik in appearance, the Boyarin resembled a lighter version of the Bogatyr' class with a short forecastle and poop, three funnels and two masts. One 120mm gun was mounted far forward, one aft and the others in upper deck sponsons by the fore and mainmasts.
Ship protection: There was a 38mm deck with 51mm slopes amidships and 76mm on the CT.
Modernizations: None.
Naval service: Boyarin struck a Russian mine 11.2.1904 off Dairen near Port Arthur and was abandoned by her crew. Towing appeared possible, but the Boyarin broke loose during the night and drifted on to another mine and sank two days later.

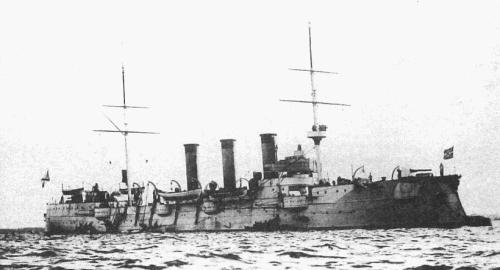

Boyarin
Many thanks to Wolfgang Stöhr for additional information on this page.
