Admiral Kornilov 1895
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Адмирал Корнилов [Admiral Kornilov] | A C de la Loire, Saint-Nazaire, France | 12.11.1885 | 9.4.1887 | 9/1888 | TS 10.1907, stricken 5.1911 |
|
Displacement normal, t |
5377 |
|
Displacement full, t |
5880 |
|
Length, m |
112.2 |
|
Breadth, m |
14.8 |
|
Draught, m |
7.77 max |
|
No of shafts |
2 |
|
Machinery |
2 HTE, 8 cylindrical boilers |
|
Power, h. p. |
5977 |
|
Max speed, kts |
17.6 |
|
Fuel, t |
coal 1000 |
|
Endurance, nm(kts) |
5000(10) |
| Armour, mm | steel; hatch glacis: 114 - 76, deck: 63 - 25, CT: 76 |
|
Armament |
14 x 1 - 152/32 obr. 1877, 6 x 1 - 47/40 Hotchkiss, 10 x 5 - 37/17 Hotchkiss, 6 - 381 TT (aw, 1 bow, 4 beam, 1 stern) |
|
Complement |
479 |
Project history: A steel protected cruiser, sheathed and coppered, with a pronounced ram bow and originally rigged as a barque. 152mm guns were on each side of the upper deck with the end guns in slightly projecting sponsons. For most of the waterline there was a cofferdam filled with coconut fibre.
Ship protection: There was a 63-51mm deck with 76mm CT and 114-76mm engine room hatch glacis, but the 152mm guns had shields only.
Modernizations: 1905: - 14 x 1 - 152/32, 8 x 5 - 37/17; + 10 x 1 - 152/44 Canet, 4 x 1 - 75/48 Canet, 4 x 1 - 7.6/94
Naval service: Admiral Kornilov was converted to TS 10.10.1907.

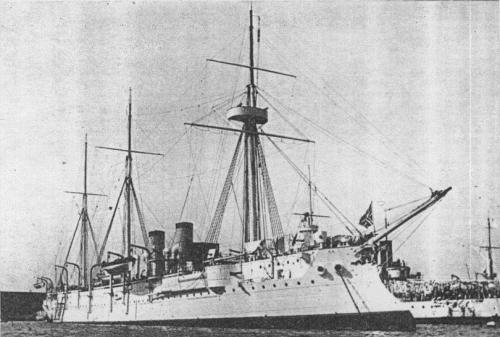

Admiral Kornilov 1902
