Ya-1 1942
|
Names |
Ya-5: ß-1 - 4 [Ya-1 - 4], 8.1944- ÊÝÌÒÙ-771 - 774 [KEMTShch-771 - 774] ß-5 [Ya-5], 8.1944- MK-5 ß-6 - 9 [Ya-6 - 9], 8.1944- MK-6 - 9, 11.1944- KT-447 - 450 ß-10 - 13 [Ya-10 - 13], 8.1944- ÊÝÌÒÙ-775 - 778 [KEMTShch-775 - 778] Ya-5M: ß-25 [Ya-25], 1.1945- MK-25 ß-26 [Ya-26] ß-27 [Ya-27] ß-28 - 30 [Ya-28 - 30], 1.1945- MK-28 - 30 MK-38; MK-39 MK-41 - 48 |
|
Builders |
345 Yd, Yaroslavl: Ya1-13, 25-30, MK-38, 39, 41-48 |
|
Commissioned |
1942: Ya-1 - 10 1943: Ya11 - 13, 25 - 30 1945: MK-38, 39, 41 - 48 |
|
Losses |
MK-5 (17.8.1944), Ya-26 (18.4.1944), Ya-27 (18.4.1944) |
|
Transfers |
none |
|
Discarding |
1946 - 1949: KEMTShch-771 - 774, KT-447 - 450, KEMTShch-775 - 778; MK-25, 28 - 30, 38, 39, 41 - 48 |
|
Displacement standard, t |
|
|
Displacement full, t |
23 |
|
Length, m |
18.7 |
|
Breadth, m |
3.56 |
|
Draught, m |
0.98 |
|
No of shafts |
1 |
|
Machinery |
Ya-5 type: 1 M-17 diesel Ya-5M type: 1 Chrysler petrol engine |
|
Power, h. p. |
Ya-5 type: 65 Ya-5M type: 93 |
|
Max speed, kts |
Ya-5 type: 9 Ya-5M type: 10 |
|
Fuel, t |
Ya-5 type: diesel oil 4 Ya-5M type: petrol 4 |
| Endurance, nm(kts) | |
| Armament |
2 x 1 - 12.7/79; 1 x 24 - 82 M-8 RL |
|
Complement |
10 |
Project history: Built as runabouts, sometimes are mentioned as Yaroslavets type. Steel-hulled, equipped with a tractor diesel or automobile motor (latter variant is known as Ya-5M type). There were minesweeper variants (KATShch) or mortar boat (MK).
Modernizations: 8.1944, KEMTShch-771 - 778: - 2 x 1 - 12.7/79, 1 x 24 - 82 RL; + 1 x 1 - 7.6/94, magnetic minesweeping gear
11/1944, KT-447 - 450: - 2 x 1 - 12.7/79, 1 x 24 - 82 rocket launcher; + 1 x 1 - 7.6/94, mecanical minesweeping gear
Naval service: Boats served as mortar boats (Ya, MK) or minesweeping boats (KT) or minesweeping boats with magnetic sweeps (KEMTShch).

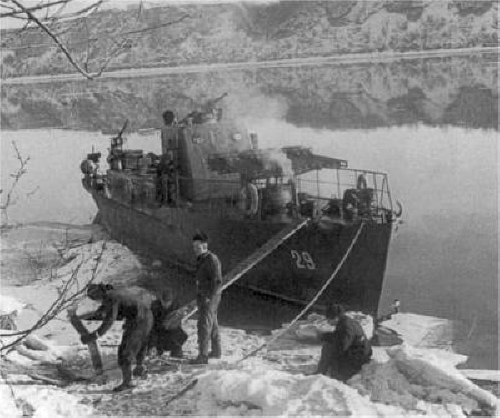

Ya-29
© Ivan Gogin, 2009-14
