TK-75 attack craft (torpedo) hydrofoils (project 125) (1962)
PSKR-150 border guard boats (project 125A) (1964 - 1967)
PSKR-150 1964
PSKR-162 1979
|
Names |
pr. 125: TK-75, 5.1966- T-75 TK-76, 5.1966- T-76 pr. 125A: ÏÑÊÐ-150-165 [PSKR-150-165] |
|
Builders |
Feodosiya SYd: TK-75, 76, PSKR-150-165 |
|
Commissioned |
1962: TK-75, 76 1964: PSKR-150-153 1965: PSKR-154-157 1966: PSKR-158-161 1967: PSKR-162-165 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1968: TK-75 (presumably), 76 1978: PSKR-151, 154 1981: PSKR-160, 161, 164 1980s: PSKR-150, 152, 153, 155-159, 162, 163, 165 |
|
Displacement standard, t |
pr. 125: 53 |
|
Displacement full, t |
pr. 125: 61 pr. 125A: 65 |
|
Length, m |
pr. 125: 25.0 pr. 125A: 26.1 |
|
Breadth, m |
pr. 125: 4.90 pr. 125A: 5.30 |
|
Draught, m |
pr. 125: 1.24 mean 2.70 max pr. 125A: 2.60 max |
|
No of shafts |
4 |
|
Machinery |
2 M-503G diesels, 2 D-20P gas turbines |
|
Power, h. p. |
28000 (2 x 4000 + 2 x 10000) |
|
Max speed, kts |
pr. 125: 73 pr. 125A: 62 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
300(45) |
|
Armament |
pr. 125: 2 x 2 - 23/43 AN-23, 2 - 533 TT pr. 125A: 2 x 2 - 23/43 AN-23, 2 DCR (4) |
|
Sensors |
pr. 125: Ksenon-125 radar pr. 125A: Ksenon-125 radar, dipping sonar |
|
Complement |
pr. 125: 12 pr. 125A: 17 |
Project history: This was a hydrofoil derivative of the failed Project 184 with a gas turbine whose TRD-20P afterburner added thrust directly. On trials, the boat showed that it could be used at up to 45kts in Sea State 1. Two prototype torpedo boats were built for the Soviet Navy, then sixteen for the KGB Maritime Border Guards (as Project 125A); they were, in effect, successors to Project 199.
Modernizations: None.
Naval service: No significant events.

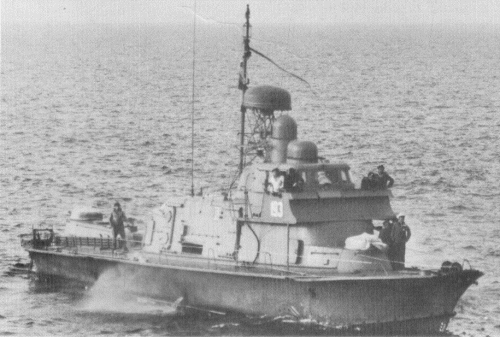

Project 125A 1976
