SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

COASTAL FORCES

T-116 attack craft (torpedo) hydrofoils (project 206M) (1970 - 1976)

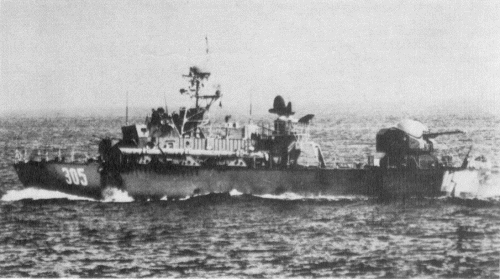

T-116 1980

Name No Yard No Builder Laid down Launched Comp Fate
Ò-117 [T-117]   401 Sredne-Nevskiy SYd, Pontonny     1973 stricken 1995
Ò-75 [T-75], 1970s- ÀÊ-75 [AK-75]   402 Sredne-Nevskiy SYd, Pontonny     10.1974 stricken 12.2004
Ò-61 [T-61], 1976- ÀÊ-61 [AK-61]   403 Sredne-Nevskiy SYd, Pontonny     1975 to Seychelles 6.1986 (Zoroaster)
Ò-119 [T-119]   404 Sredne-Nevskiy SYd, Pontonny     1975 stricken 7.1994
Ò-94 [T-94]   900 Almaz, Leningrad     8.10.1972 stricken 7.1994
Ò-118 [T-118], 1970s- ÀÊ-118 [AK-118]   901 Almaz, Leningrad     30.11.1972 stricken 4.2002
Ò-95 [T-95], 1970   902 Almaz, Leningrad     1973 stricken 1995
Ò-98 [T-98]   01301 Vympel, Rybinsk     30.1.1974 stricken 3.1992
Ò-72 [T-72], 1970s- ÀÊ-72 [AK-72]   01302 Vympel, Rybinsk     13.12.1975 stricken 5.2001
Ò-373 [T-373]   01303 Vympel, Rybinsk     1974 stricken 12.1995
Ò-116 [T-116]   801 Vladivostok SYd 29.1.1969   31.12.1970 stricken 4.1992
Ò-126 [T-126]   802 Vladivostok SYd     1971 stricken 6.1991
Ò-140 [T-140]   803 Vladivostok SYd     12.1.1971 stricken 3.1992
Ò-96 [T-96]   804 Vladivostok SYd     12.1972 stricken 6.1993
Ò-100 [T-100]   805 Vladivostok SYd     12.1972 stricken 6.1993
Ò-101 [T-101]   806 Vladivostok SYd     6.1973 stricken 11.1994
Ò-150 [T-150]   807 Vladivostok SYd     8.1973 stricken 3.1992
Ò-115 [T-115]   808 Vladivostok SYd     12.1973 stricken 1993
Ò-88 [T-88]   809 Vladivostok SYd     2.1974 stricken 6.1993
Ò-167 [T-167]   810 Vladivostok SYd     12.1974 stricken 4.1992
Ò-252 [T-252]   811 Vladivostok SYd     8.1975 stricken 6.1993
Ò-253 [T-253]   812 Vladivostok SYd     12.1975 stricken 6.1993
Ò-272 [T-272]   813 Vladivostok SYd     30.6.1976 stricken 6.1993
Ò-273 [T-273]   814 Vladivostok SYd 29.12.1975   31.12.1976 stricken 6.1993







Displacement standard, t

218

Displacement full, t

250

Length, m

39.5

Breadth, m

7.5 wl 13.6 foil

Draught, m

1.64 hull 3.24 foil

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

44

Fuel, t

diesel oil

Endurance, nm(kts)

1450(14)

Armament

1 x 2 - 57/50 AK-725, 1 x 2 - 25/82 2M-3M, 4 - 533 TT, 2 DCR (10)

Sensors

MR-102 Baklan, MR-103 Bars, MR-206 radars, MG-329 Sheksna sonar, Dozor-1 CCS

Complement

25

Project history: Project 206 with a bow hydroplane added and changed artillery. She was able to operate freely at 40kts in Sea State 4, and 35kts in Sea State 5. They had a helicopter-type dipping sonar and since 1980s carried USET-80 DP torpedoes.

Modernizations: late 1970s, AK-61, AK-72, AK-75, AK-118: - 4 - 533 TT

late 1970s, AK-72, AK-118: foils were removed

1980s, T-95, T-98, T-117: + 1 x 1 - 12.7/79

1980s, AK-72: + 2 x 1 - 12.7/79

1980s, AK-72, T-95, T-98, T-117: + 2x PK-16, 2x UB-16-57UM decoy RL

1980s, T-94: + 2x PK-16 decoy RL

1980s, AK-72: - MR-206 radar; + SRN-206S radar

1980s, T-117: - MR-206 radar; + SRN-207M radar

1980s, AK-75, AK-118: - MR-206 radar; + SRN-207N radar

Naval service: No significant events.

pr. 206M 1980
