BK-331 1944
|
Names |
¹33 [No33], 8.1942- ¹24 [No24], 11.1942- ¹81 [No81], 5.1943- ¹332 [No332], 5.1943- ¹81 [No81] ¹43 [No43], 6.1942- ¹31 [No31], 8.1942- ¹21 [No21] ¹44 [No44], 6.1942- ¹32 [No32], 8.1942- ¹23 [No23], 5.1943- ¹331 [No331], 3.1944- ÁÊ-331 [BK-331] ¹45 [No45], 6.1942- ¹34 [No34], 8.1942- ¹25 [No25] ¹53 [No53], 8.1942- ¹81 [No81], 9.1942- ¹34 [No34], 10.1942- ¹26 [No26], 10.1942- ¹101 [No101], 11.1942- ¹82 [No82], 5.1943- ¹334 [No334] ¹54 [No54], 8.1942- ¹82 [No82], 9.1942- ¹101 [No101], 10.1942- ¹26 [No26], 5.1943- ¹333 [No333], 3.1944- ÁÊ-333 [BK-333] ¹102 [No102], 11.1942- ¹83 [No83], 3.1943- ¹324 [No324], 6.1943- ¹323 [No323], 3.1944- ÁÊ-323 [BK-323] |
|
Builders |
340 Yd, Zelenodolsk: No33, 43-45, 53, 54, 102 |
|
Commissioned |
6-10/1942: No33, 43 - 45, 53, 54, 102 |
|
Losses |
No332 (10.11.1943), No21 (8.10.1942), No25 (3.11.1942) |
|
Transfers |
none |
|
Discarding |
1950s: all survived |
|
Displacement standard, t |
32 |
|
Displacement full, t |
36.5 |
|
Length, m |
24.7 |
|
Breadth, m |
3.85 |
|
Draught, m |
0.60 |
|
No of shafts |
2 |
|
Machinery |
2 V-2 diesels |
|
Power, h. p. |
800 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil 2.3 |
| Endurance, nm(kts) | |
|
Armour, mm |
belt: 7, deck: 4, turrets: 45 - 30, CT: 7 |
|
Armament |
1 x 1 - 76/40 F-34 3 x 1 - 7.6/94 |
|
Complement |
13 |
Project history: Diesel-engined armoured MGB for Amu-Darya, designed under guidance of Yu. Yu. Benua in 1939 on the basis of project 1125, with replacement of the aviation motors by 2 V-2 tank diesels.
Ship protection: Hull and CT had bullet-proof protection, guns placed in standard tank turrets. 76/30mm 8K guns were on open mounts without shields.
Modernizations: None.
Naval service: Survived boats in 1945 were transferred to Board Guard.

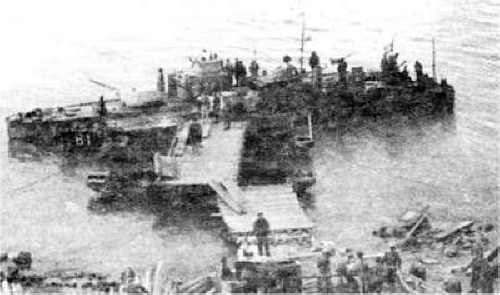

No81
