R-27 1990
R-44 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Р-27 [R-27] | 241 | Sredne-Nevskiy SYd, Pontonny | 31.12.1977 | stricken 4.2002 | |||
| Р-44 [R-44] | 242 | Sredne-Nevskiy SYd, Pontonny | 30.9.1978 | stricken 10.2008 | |||
| Р-50 [R-50], 8.2004- Карачаево-Черкесия [Karachaevo-Cherkesiya] | 243 | Sredne-Nevskiy SYd, Pontonny | 1978 | stricken 2015 | |||
| Р-221 [R-221] | 244 | Sredne-Nevskiy SYd, Pontonny | 30.12.1978 | stricken 3.1998 | |||
| Р-254 [R-254] | 245 | Sredne-Nevskiy SYd, Pontonny | 10.1.1979 | stricken 7.1994 | |||
| Р-260 [R-260] | 246 | Sredne-Nevskiy SYd, Pontonny | 1979 | to Ukraine 1.1996 (Умань [Uman']) | |||
| Р-262 [R-262] | 247 | Sredne-Nevskiy SYd, Pontonny | 30.11.1979 | 12.12.1980 | to Ukraine 1.1996 (Прилуки [Priluki]) | ||
| Р-265 [R-265], 1990- Комсомолец Татарии [Komsomolets Tatarii], 2.1992- Р-265 [R-265] | 248 | Sredne-Nevskiy SYd, Pontonny | 15.11.1980 | to Ukraine 1.1996 (Каховка [Kakhovka]) | |||
| Р-251 [R-251] | 249 | Sredne-Nevskiy SYd, Pontonny | 15.6.1981 | to Ukraine 1.1996 (Цюрупинськ [Tsiuriupinsk]) | |||
| Р-15 [R-15] | 250 | Sredne-Nevskiy SYd, Pontonny | 29.10.1981 | to Ukraine 8.1997 (Конотоп [Konotop]) | |||
| Р-25 [R-25], 2000s- Боровск [Borovsk] | 251 | Sredne-Nevskiy SYd, Pontonny | 1983 | stricken 2017 | |||
| Р-30 [R-30], 5.2005- Будёновск [Budyonovsk] | 252 | Sredne-Nevskiy SYd, Pontonny | 1983 | stricken 2017 |
|
Displacement standard, t |
233 |
|
Displacement full, t |
257 |
|
Length, m |
39.5 |
|
Breadth, m |
7.60 |
|
Draught, m |
2.00 hull |
|
No of shafts |
3 |
|
Machinery |
3 M-520 diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(12) |
|
Armament |
241-246, 248-252: 2 x 1 P-15M Termit SSM (2 4K51), 1 x 4 Strela-3M SAM (16 9M36M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M 247: 2 x 1 P-15M Termit SSM (2 4K51), 1 x 4 Strela-3 SAM (16 9M36), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M |
|
Sensors |
241-245: MR-101 Rangout, MR-123 Vympel-A, Omega radars, 2x PK-16 decoy RL 246: 4Ts53 Garpun, MR-123 Vympel-A, Omega radars, Pchela ECM suite, 2x PK-16 decoy RL 247-249, 251, 252: 4Ts53 Garpun, MR-123 Vympel-A, Omega radars, 2x PK-16 decoy RL 250: 4Ts53 Garpun, MR-123 Vympel-A radars, 2x PK-16 decoy RL |
|
Complement |
29 |
Project history: Missile hydrofoil version with fwd semisubmerged foil of Project 206 fast attack craft (torpedo). Artillery was also strengthened.
Modernizations: 1985, R-44 under Project 02066: - 2 x 1 P-15M Termit SSM, MR-123 Vympel-A radar; + 2 x 4 Uran SSM (8 3M24), MR-123-02 Vympel-M radar; displacement was 230/265t, speed max 42kts
1987, R-44: - 1 x 6 - 30/54; + 1 x 12 - 30/54 AK-630M1-2 Roy
1990s, R-221: foil was removed
1996, R-44: + SP-521 Rakurs e/o targeting system
Naval service: No significant events.

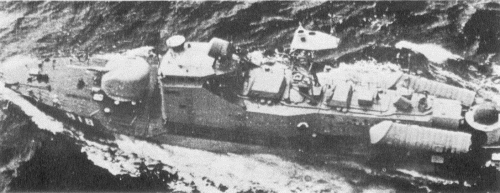

Project 206MR 1980

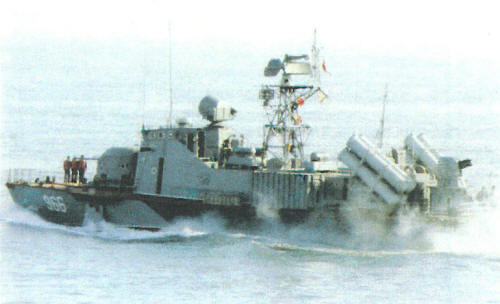

R-44 2003
