ORLAN border guard boats (pr. 03050) (2018-)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Îðëàí [Orlan] | 734 | 01408 | Vympel, Rybinsk | 24.6.2016 | 3.10.2017 | 4.2018 | in service (2019) |
| Êîðøóí [Korshun] | 01410 | Vympel, Rybinsk | 11.10.2018 | 2019 | building (2019) | ||
| Êðå÷åò [Krechet] | 01411 | Vympel, Rybinsk | 2018 | 17.10.2018 | 2019 | building (2019) | |
| ÏÑÊÀ-... [PSKA-...] | 01412 | Vympel, Rybinsk | 2019 | building (2019) | |||
| ÏÑÊÀ-... [PSKA-...] | 01413 | Vympel, Rybinsk | 2019 | building (2019) | |||
| ÏÑÊÀ-... [PSKA-...] | Vympel, Rybinsk | 2020 | ordered (2019) |
|
Displacement standard, t |
95 |
|
Displacement full, t |
112 |
|
Length, m |
29.1 |
|
Breadth, m |
6.48 |
|
Draught, m |
1.90 |
|
No of shafts |
3 |
|
Machinery |
3 YaMZ-8401.10-09ppDMT300HL diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000 |
|
Armament |
1 x 1 - 7.6/90 |
|
Electronic equipment |
radar |
|
Complement |
5 |
Project history: Redesigned project 1496M1.
Modernizations: None.
Naval service: No significant events.

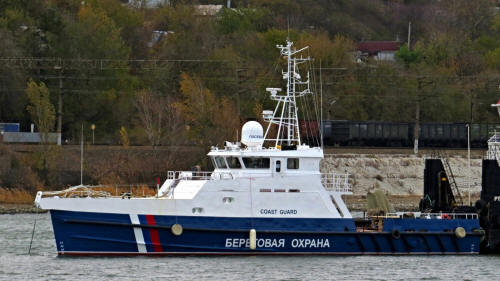

Yard No 01411 2018
