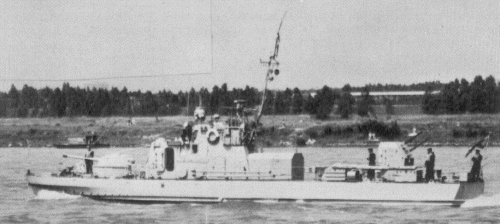

PSKR-316 border guard boats (project 1204) (1967 - 1972)
AK-354 1967
AK-483 1979
AK-201 2015
|
Names |
Navy AK-197, later- ÏÑÊÐ-... [PSKR-...] AK-198 AK-201-203 AK-205-209 AK-211 AK-222-225 AK-241, later- ÏÑÊÐ-... [PSKR-...] AK-242 AK-243, 5.1974- ÏÑÊÐ-381 [PSKR-381] AK-244 AK-245, 10.1985- ÏÑÊÐ-389 [PSKR-389] AK-246-248 AK-249, 10.1985- ÏÑÊÐ-288 [PSKR-388] AK-250, later- ÏÑÊÐ... [PSKR-...] AK-255 AK-314 AK-316-319 AK-354 AK-384 AK-385, 7.1974- ÏÑÊÐ... [PSKR-...] AK-387 AK-397-399 AK-404-406, 7.1974- ÏÑÊÐ-382-384 [PSKR-382-384] AK-407, 7.1974- ÏÑÊÐ-386 [PSKR-386] AK-408, 409 AK-483-485, 5.1974- ÏÑÊÐ-378-380 [PSKR-378-380] AK-489 AK-506 AK-507, 10.1985- ÏÑÊÐ-387 [PSKR-387] AK-508, 11.1985- ÏÑÊÐ-390 [PSKR-390] AK-509, 12.1994- ÏÑÊÐ-... [PSKR-...] AK-563, 564 AK-581-589 AK-599 AK-602 Border Guard ÏÑÊÐ-316-321 [PSKR-316-321] ÏÑÊÐ-325, 326 [PSKR-325, 326] ÏÑÊÐ-328-331 [PSKR-328-331] ÏÑÊÐ-333 [PSKR-333] ÏÑÊÐ-336-377 [PSKR-336-377] |
|
Builders |
Zaliv, Kerch' (98): AK-197, 198, 201-203, 205, 207-209, 211, 222, 224, 225, 241-250, 354, 384, 385, 387, 397-399, 404-409, 483-485, 489, 506-509, 563, 564, 581-585, 587-589, 599, 602, PSKR-336-377 61 kommunara, Nikolayev (20): AK-206, 223, 255, 314, 316-319, 586, PSKR-316-321, 325, 326, 328-331, 333 |
|
Commissioned |
1967: AK-354, PSKR-316, 318-321 1968: AK-314, 384, 385, 387, 563, 564, 581-589, 599, 602, PSKR-317, 325, 326, 328-331, 333 1969: AK-206, 222-225, 255, 316-319, 397-399, 404-409, PSKR-336-341 1970: AK-483-485, 489, 506-509, PSKR-342-357 1971: AK-241-250, PSKR-358-370 1972: AK-197, 198, 201-203, 205, 207-209, 211, PSKR-371-377 |
|
Losses |
none |
|
Transfers |
Abkhazia (4): 8.2004- 4 pr. 1204 Kampuchea (4): 3.1984- 2 pr. 1204, 1.1985- 2 pr. 1204 Uzbekistan (6): 1992- 6 pr. 1204 Ukraine (4): 4.1994- AK-211, 246, 397, 563 |
|
Discarding |
1988: AK-404 1989: AK-207, 222, 405, 406, 485 1990: PSKR-318, 320, 321 1991: AK-247 1992: AK-319, 354, 587 1993: AK-203, 242, 314, 316-318, 384, 387, 581, 584, 602 1994: AK-198, 205, 398, 399, 408, 409, 489, 506, 509, 564, 583, 585, 588, 589, PSKR-341 1996: AK-245 1998: AK-197, 385, 483, 507, 508, PSKR-336, 345, 376 and others 2008: AK-202 2016: AK-224, 582, 599 in service (2019): AK-201, 209, 223, 248 |
|
Displacement standard, t |
|
|
Displacement full, t |
71 77 |
|
Length, m |
27.4 |
|
Breadth, m |
4.32 |
|
Draught, m |
0.85 1.00 |
|
No of shafts |
2 |
|
Machinery |
2 M-50F diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
320(10) |
|
Armour, mm |
belt: 8, deck: 4, turret: 15 - 10, CT: 10 - 4 |
|
Armament |
AK-206, 223, 255, 314, 316-319, 354, 586, PSKR-316-321, 325, 326, 328-331, 333, 354, 355: 1 x 1 - 76/48 D-56TS, 1 x 1 - 7.6/94, 10 mines AK-222, 224, 225, 384, 385, 387, 397-399, 404-409, 563, 564, 581-585, 587-589, 599, 602, PSKR-336-353: 1 x 1 - 76/48 D-56TS, 1 x 2 - 14.5/93, 1 x 1 - 7.6/94, 10 mines AK-508, 509, PSKR-356: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 4 x 1 - 30 BP-30 Plamia GL, 10 mines AK-242, 250, 483-485, 489, 506, 507, PSKR-357-367: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 10 mines AK-197, 198, 201-203, 205, 207-209, 211, 241, 244-249, PSKR-368-377: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 1 x 17 - 140 BM-14-17 RL, 4 x 1 - 30 BP-30 Plamia GL, 10 mines |
| Electronic equipment | Donets-2 radar |
|
Complement |
14 |
Project history: Work on river craft reviewed about 1965, presumably in response to the growing tension between the Soviet Union and China, eg on the Amur River. TsKB-5 (now Almaz) developed a new Project 1204. The lead boat was completed in Kerch in 1967. Project 1204 craft could embark a battalion of naval infantry, although they would have to be billeted aborder another ship.
Ship protection: Citadel and turret were protected by splinter-proof armour.
Modernizations: None.
Naval service: In 2015 four craft served at Caspian.
Project 1204
