AK-225 attack craft (gun) (project 205PE) (1969)
AK-225 1969
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| AK-225 | 110 | Primorskiy Yd, Leningrad | 1.1969 | stricken 6.1991 |
|
Displacement standard, t |
175 |
|
Displacement full, t |
210 |
|
Length, m |
39.0 |
|
Breadth, m |
8.10 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 M-504 diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(12) |
|
Armament |
1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630M |
|
Sensors |
Don, MR-103 Bars, MR-123 Vympel-A radars, Vympel-R2 ECM suite, 2 PK-16 decoy RL |
|
Complement |
30 |
Project history: Single hydrofoil trials craft, it was armed with a twin 57mm gun forward (for Project 1124 trials).
Modernizations: 1975: - 1 x 2 - 57/50; + 1 x 1 - 57/50 AK-157
Naval service: No significant events.

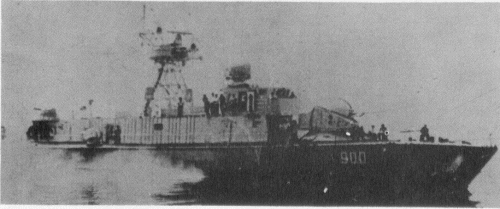

AK-225 1976
