No202 1944
|
Names |
¹21 [No21] (ex-PT89) ¹22 [No22] (ex-PT86), 2.1944- TK-214 ¹202 - 213 [No202 - 213] (ex-PT265 - 276), 4.1944- TK-202 - 213 TK-215 - 218 (ex-PT289 - 292) TK-219 (ex-PT294) TK-222 (ex-PT293) TK-851 - 882 (ex-PT625 - 656) |
|
Builders |
Higgins, New Orleans, USA: No21, 22, 202-213, TK-215-219, 222, 851-882 |
|
Commissioned |
7 - 12.1942 // 2.1943 - No21, 22 1 - 12.1943 // 11.1943 - No202 - 213 1 - 12.1943 // 12.1943 - TK-215 - 219, TK-222 12.1944 // 5.1945 - TK-851, 852 1 - 10.1945 // 5 - 8.1945 - TK-853 - 882 |
|
Losses |
No21 (12.5.1943), TK-214 (10.3.1945), TK-203 (19.8.1944), TK-209 (9.5.1944), TK-212 (10.4.1944), TK-217 (8.5.1944) |
|
Transfers |
No |
|
Discarding |
1954: TK-855, TK-859, TK-877 1956: TK-202, TK-204 - 208, TK-210, TK-211, TK-213, TK-215, TK-216, TK-218, TK-219, TK-222, TK-851 - 854, TK-856 - 858, TK-860 - 876, TK-878 - 882 |
|
Displacement standard, t |
35 |
|
Displacement full, t |
48 |
|
Length, m |
23.9 - 24.0 |
|
Breadth, m |
6.12 |
|
Draught, m |
1.60 |
|
No of shafts |
3 |
|
Machinery |
3 petrol engines |
|
Power, h. p. |
4050 - 4500 |
|
Max speed, kts |
41 |
|
Fuel, t |
petrol 10800 l |
| Endurance, nm (kts) |
500 (20) |
|
Armament |
No21, 22, 202 - 213, TK-215 - 219, TK-222: 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 533 TT TK-851 - 882: 1 x 1 - 40/56 Mk 1.2, 2 x 1 - 20/70 Mk 4, 4 - 533 TT |
| Electronic equipment | SO or SCR-517A radar |
| Complement |
17 |
Project history: Higgins 78ft MTBs, delivered on lend-lease.
Modernizations: 1944, most survived: + 1 x 1 - 20/70 Mk 4
Naval service: No significant events.

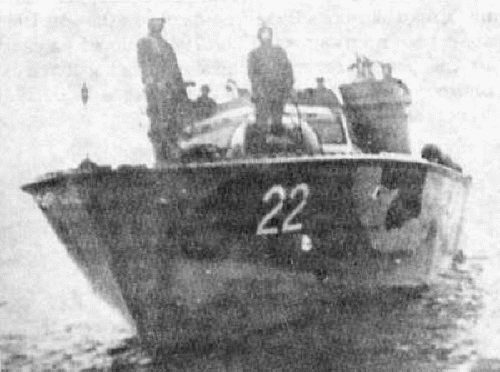

No22
