PVO-10 1943
|
Names |
обн-10 [PVO-10] обн-11 [PVO-11], 4.1944- йюры-224 [KATShch-224], 6.1944- KT-224 обн-12 [PVO-12] обн-13 - 15 [PVO-13 - 15], 4.1944- йюры-225 - 227 [KATShch-225 - 227] обн-16 - 19 [PVO-16 - 19], 4.1944- йюры-228 - 231 [KATShch-228 - 231], 6.1944- KT-228 - 231 обн-20 - 22 [PVO-20 - 22] обн-23 [PVO-23], 4.1944- йюры-233 [KATShch-233], 6.1944- KT-233 обн-24 [PVO-24] обн-25 [PVO-25], 4.1944- йюры-234 [KATShch-234], 6.1944- KT-234 обн-26 [PVO-26] обн-27 [PVO-27] обн-61 - 68 [PVO-61 - 68] обн-69 [PVO-69], 9.1945- MK-116 обн-70 [PVO-70], 9.1945- MK-117 обн-71 - 80 [PVO-71 - 80] |
|
Builders |
343 Yd, Gorokhovets: PVO10-27, 61-80 |
|
Commissioned |
1943: PVO-10 - 27 1944: PVO-61 - 80 |
|
Losses |
PVO-10 (17.11.1943), PVO-12 (21.11.1943), PVO-20 (21.11.1943), PVO-21 (10.1.1944), PVO-22 (21.11.1943), PVO-24 (26.11.1943), PVO-26 (15.11.1943), PVO-27 (23.11.1943) |
|
Transfers |
none |
|
Discarding |
1945: KT-224, 228, 234 1947 - 1948: KATShch-225 - 227, KT-229 - 231, 233, PVO-61 - 68, MK-116, 117, PVO-71 - 80 |
|
Displacement standard, t |
15.5 |
|
Displacement full, t |
18.9 |
|
Length, m |
14.6 |
|
Breadth, m |
3.57 |
|
Draught, m |
0.85 |
|
No of shafts |
1 |
|
Machinery |
1 Chrysler petrol engine |
|
Power, h. p. |
115 |
|
Max speed, kts |
8 |
|
Fuel, t |
petrol 0.9 |
| Endurance, nm(kts) | 150(4.5) |
| Armament |
1 x 1 - 37/63 70K, 1 x 1 - 20/70 Oerlikon Mk IV or 1 x 1 - 12.7/79 |
|
Complement |
13 |

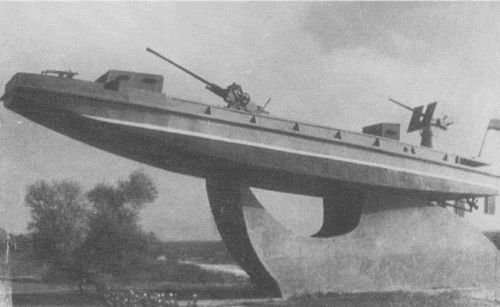

Project history: AA launches built on the basis of construction of landing boat project 165.
Modernizations: 4.1944, KATShch-224 - 231, 233, 234: - 1 x 1 - 37/63, 1 x 1 - 20/70; + 1 x 1 - 7.6/94, mechanical minesweeping gear.
9/1945, MK-116, 117: - 1 x 1 - 37/73; + 1 x 24 - 82 M-8 RL
Naval service: No significant events.
╘ Ivan Gogin, 2009-14
