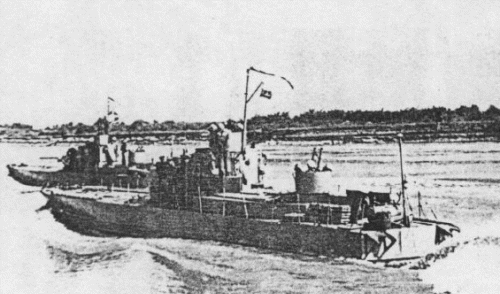

BK-148 1945
BK-134 Geroy Sovetskogo Soyuza Krasnoselskiy 1944
|
Names |
№1 [No1], 2.1944- БК-1 [BK-1] №2 [No2], 2.1944- БК-2 [BK-2] №13 - 15 [No13 - 15], 6.1942- №11 - 13 [No11], 3.1944- БК-11 - 13 [BK-11 - 13] №15 [No15], 9.1942- №93 [No93], 3.1944- БК-93 [BK-93] №16 - 19 [No16 - 19], 2.1944- БК-16 - 19 [BK-16 - 19] №23 [No23], 6.1942- №14 [No14], 3.1944- БК-14 [BK-14] №24 [No24], 6.1942- №21 [No21], 8.1942- №61 [No61], 11.1942- №41 [No41], 3.1944- БК-41 [BK-41] №25 [No25], 6.1942- №22 [No22] №26 - 29 [No26 - 29], 2.1944- БК-26 - 29 [BK-26 - 29] №31 [No31], 2.1944- БК-31 [BK-31] №32 [No32], 2.1944- БК-32 [BK-32] №32 [No32], 11.1942- №53 [No53], 3.1943- №321 [No321], 3.1944- БК-321 [BK-321] №33 [No33], 2.1944- БК-33 [BK-33] №33 [No33], 6.1942- №23 [No23], 8.1942- №62 [No62], 11.1942- №42 [No42], 3.1944- БК-42 [BK-42] №33 [No33], 11.1942- №54 [No54], 3.1943- №322 [No322], 3.1944- БК-322 [BK-322] №34 [No34], 2.1944- БК-34 [BK-34] №34 [No34], 6.1942- №24 [No24], 8.1942- №65 [No65], 9.1942- №63 [No63], 11.1942- №43 [No43], 3.1944- БК-43 [BK-43] №34 [No34], 9.1942- №103 [No103], 11.1942- №51 [No51], 12.1942- №44 [No44], 3.1944- БК-44 [BK-44] №35 [No35] №35 [No35], 4.1942- №41 [No41], 3.1944- БК-206 [BK-206] №35 [No35], 9.1942- №31 [No31], 11.1942- №52 [No52], 3.1943- №311 [No311] №36 - 38 [No36 - 38] №50 [No50] №63 [No63], 4.1942- №42 [No42], 3.1944- БК-203 [BK-203] №64 [No64], 4.1942- №21 [No21], 3.1944- БК-204 [BK-204] №64 [No64], 10.1942- №91 [No91], 3.1943- №314 [No314], 6.1943- №313 [No313], 3.1944- БК-313 [BK-313] №65 [No65], 4.1942- №22 [No22], 3.1944- БК-205 [BK-205] №65 [No65], 10.1942- №92 [No92], 3.1944- БК-92 [BK-92] №71 [No71], 10.1942- №94 [No94], 10.1942- №71 [No71], 11.1942- №61 [No61], 3.1943- №312 [No312] №76 [No76], 9.1942- №74 [No74], 10.1942- №34 [No34] №111 [No111], 5.1940- Б-111 [B-111], 9.1940- №111 [No111], 6.1941- №101 [No101], 7.1941- №201 [No201] №112 [No112], 5.1940- Б-112 [B-112], 9.1940- №112 [No112], 6.1941- №102 [No102] №113 [No113], 5.1940- Б-113 [B-113], 9.1940- №113 [No113], 6.1941- №103 [No103] №114 [No114], 5.1940- Б-114 [B-114], 9.1940- №114 [No114], 6.1941- №104 [No104], 7.1941- №301 [No301] №121 [No121], 8.1940- Б-133 [B-133], 6.1941- №405 [No405], 7.1941- №404 [No404] №122 [No122], 8.1940- Б-134 [B-134], 6.1941- №501 [No501] №123 Герой Советского Союза Одинцов [No123 Geroy Sovetskogo Soyuza Odintsov] №123 [No123], 8.1940- Б-132 [B-132], 6.1941- №404 [No404], 7.1941- №303 [No303], 7.1942- №103 [No103] №124 Герой Советского Союза Голубец [No124 Geroy Sovetskogo Soyuza Golubets], 3.1944- БК-124 Герой Советского Союза Голубец [BK-124 Geroy Sovetskogo Soyuza Golubets] №124 [No124], 8.1940- Б-131 [B-131], 6.1941- №403 [No403], 7.1941- №302 [No302], 7.1942- №204 [No204] №131 Герой Советского Союза Фильченков [No131 Geroy Sovetskogo Soyuza Filchenkov], 3.1944- БК-131 Герой Советского Союза Фильченков [BK-131 Geroy Sovetskogo Soyuza Filchenkov] №132 Герой Советского Союза Цибулько [No132 Geroy Sovetskogo Soyuza Tsibulko], 3.1944- БК-132 Герой Советского Союза Цибулько [BK-132 Geroy Sovetskogo Soyuza Tsibulko] №133 Герой Советского Союза Паршин [No133 Geroy Sovetskogo Soyuza Parshin] №134 Герой Советского Союза Красносельский [No134 Geroy Sovetskogo Soyuza Krasnoselskiy], 3.1944- БК-134 Герой Советского Союза Красносельский [BK-134 Geroy Sovetskogo Soyuza Krasnoselskiy] №200 - 202 [No200 - 202], 3.1944- БК-200 - 202 [BK-200 - 202] №222 - 224 [No222 - 224], 2.1944- БК-222 - 224 [BK-222 - 224] №231 [No231], 2.1944- БК-231 [BK-231] №232 [No232], 2.1944- БК-232 [BK-232] №233 Минёр Никулин [No233 Minyor Nikulin], 2.1944- БК-233 Минёр Никулин [BK-233 Minyor Nikulin] №234 Калюжный [No234 Kalyuzhnyy], 2.1944- БК-234 Калюжный [BK-234 Kalyuzhnyy] №241 [No241], 2.1944- БК-241 [BK-241] №242 [No242], 2.1944- БК-242 [BK-242] №243 [No243], 2.1944- БК-243 [BK-243], 7.1945- БК-243 Капитан-лейтенант Савицкий [BK-243 Kapitan-leytenant Savitskiy] №244 [No244], 2.1944- БК-244 [BK-244] №322 [No322], 2.1944- БК-322 [BK-322] №323 [No323], 2.1944- БК-323 [BK-323] №324 [No324] №325 [No325], 2.1944- БК-325 [BK-325] Б-111 - 113 [B-111 - 113], 6.1941- №201 - 203 [No201 - 203], 7.1941- №401 - 403 [No401 - 403] Б-114 [B-114], 6.1941- №204 [No204] Б-115 [B-115], 6.1941- №301 [No301], 7.1941- №304 [No304] Б-211 [B-211], 6.1941- №302 [No302], 7.1941- №101 [No101] Б-212 - 214 [B-212 - 214], 6.1941- №212 - 214 [No212 - 214], 2.1944- БК-212 - 214 [BK-212 - 214] Б-215 [B-215], 6.1941- №215 [No215], 12.1944- БК-60 [BK-60] Б-221 [B-221], 6.1941- №303 [No303], 7.1941- №102 [No102] Б-222 [B-222], 6.1941- №304 [No304], 7.1941- №103 [No103] Б-223 [B-223], 6.1941- №401 [No401], 7.1941- №104 [No104] Б-224 [B-224], 6.1941- №402 [No402], 7.1941- №105 [No105], 7.1942- №101 [No101] Б-231 [B-231], 6.1941- №502 [No502], 7.1941- №204 [No204], 7.1942- №202 [No202] Б-232 [B-232], 6.1941- №503 [No503], 7.1941- №202 [No202], 7.1942- №102 [No102] Б-233 [B-233], 6.1941- №504 [No504], 7.1941- №203 [No203] Б-234 [B-234], 6.1941- №505 [No505], 7.1941- №205 [No205], 7.1942- №203 [No203] БК-3 [BK-3], 7.1945- БК-3 Лейтенант Глазунов [BK-3 Leytenant Glazunov] БК-4 - 8 [BK-4 - 8] БК-76 Бородинец [BK-76 Borodinets] БК-77 Ренийский Патриот [BK-77 Reniyskiy Patriot] БК-78 [BK-78] БК-79 [BK-79] БК-85 [BK-85] БК-86 [BK-86] БК-87 Тузловский Патриот [BK-87 Tuzlovskiy Patriot] БК-88 Килийский Патриот [BK-88 Kiliyskiy Patriot] БК-89 Килиец [BK-89 Kiliets] БК-90 Староказицкий Патриот [BK-90 Starokazitskiy Patriot] БК-104 - 111 [BK-104 - 111] БК-139 [BK-139] БК-140 [BK-140] БК-141 Тузловец [BK-141 Tuzlovets] БК-142 Трудящийся Килии [BK-142 Trudyashchiysya Kilii] БК-143 Дунайский Патриот [BK-143 Dunayskiy Patriot] БК-144 Ответ Измаила [BK-144 Otvet Izmaila] БК-145 Бородинский Патриот [BK-145 Borodinskiy Patriot] БК-146 Речник Волготанкера [BK-146 Rechnik Volgotankera] БК-147 Рениец [BK-147 Reniets] БК-148 - 153 [BK-148 - 153] БК-155 - 157 [BK-155 - 157] БК-186 [BK-186] БК-225 - 230 [BK-225 - 230] БК-239 [BK-239] БК-261 - 266 [BK-261 - 266] БК-301 - 304 [BK-301 - 304] БК-305 Молотовский Ремесленник [BK-305 Molotovskiy Remeslennik] БК-306 [BK-306] БК-307 [BK-307] БК-358 - 359 [BK-358 - 359] БК-371 - 385 [BK-371 - 385]
all survived boats were renamed in 1965 from BK-... (armoured boats) to AK-... (gunboats) |
|
Builders |
340 Yd, Zelenodolsk: No13, 14, 15(i), 15(ii), 16 - 19, 23 - 29, 31, 32(i), 32(ii), 33(i), 33(ii), 33(iii), 34(i), 34(ii), 34(iii), 35(i), 35(ii), 35(iii), 36 - 38, 63, 64(i), 64(ii), 65(i), 65(ii), 71, 76, 111 - 114, 121, 122, 123(i) Geroy Sovetskogo Soyuza Odintsov, 123(ii), 124(i) Geroy Sovetskogo Soyuza Golubets, 124(ii), 131 Geroy Sovetskogo Soyuza Filchenkov, 132 Geroy Sovetskogo Soyuza Tsibulko, 133 Geroy Sovetskogo Soyuza Parshin, 134 Geroy Sovetskogo Soyuza Krasnoselskiy, 202, 233 Minyor Nikulin, 234 Kalyuzhnyy, 322 - 325, B-111 - 115, 211 - 215, 221 - 224, 231 - 234, BK-78, 79 344 Yd, Perm: No1, 2, 50, 200, 201, 222 - 224, 231, 232, 241 - 244, BK-3 - 8, BK-76 Borodinets, BK-77 Reniyskiy Patriot, BK-85, BK-86, BK-87 Tuzlovskiy Patriot, BK-88 Kiliyskiy Patriot, BK-89 Kiliets, BK-90 Starokazitskiy Patriot, BK-104 - 111, 139, 140, BK-141 Tuzlovets, BK-142 Trudyashchiysya Kilii, BK-143 Dunayskiy Patriot, BK-144 Otvet Izmaila, BK-145 Borodinskiy Patriot, BK-146 Rechnik Volgotankera, BK-147 Reniets, BK-148 - 153, 155 - 157, 186 - 199, 301 - 304, BK-305 Molotovskiy Remeslennik, BK-306, 307, 335 - 339, 371 - 385, 425 - 430, 435 - 439 |
|
Commissioned |
1938: No111 - 114, 121 - 124 1939: No16 - 19, 26 - 29, 31, 32(i), 33(i), 34(i), 35(i), 36 - 38 1940: B-111 - 115, B-211 - 215, B-221 - 224, B-231 - 234 1941: No35(ii), 63, 64(i), 65(i), 322 - 325 1942: No13, 14, 15(i), 15(ii), 23 - 25, 32(ii), 33(ii), 33(iii), 34(ii), 34(iii), 35(iii), 64(ii), 65(ii), 71, 76 1943: No1, 2, 50, 123 Geroy Sovetskogo Soyuza Odintsov, 124 Geroy Sovetskogo Soyuza Golubets, 131 Geroy Sovetskogo Soyuza Filchenkov, 132 Geroy Sovetskogo Soyuza Tsibulko, 133 Geroy Sovetskogo Soyuza Parshin, 134 Geroy Sovetskogo Soyuza Krasnosselskiy, 200 - 202, 222 - 224, 231, 232, 233 Minyor Nikulin, 234 Kalyuzhnyy, 241 - 244, BK-3 - 6 1944: BK-7, 8, 139, 140, 186, 301 - 304, BK-305 Molotovskiy Remeslennik, BK-306, BK-307, 371 - 385 1945: BK-76 Borodinets, BK-77 Reniyskiy Patriot, BK-78, BK-79, BK-85, BK-86, BK-87 Tuzlovskiy Patriot, BK-88 Kiliyskiy Patriot, BK-89 Kiliets, BK-90 Starokazitskiy Patriot, BK-104 - 111, BK-141 Tuzlovets, BK-142 Trudyashchiysya Kilii, BK-143 Dunayskiy Patriot, BK-144 Otvet Izmaila, BK-145 Borodinskiy Patriot, BK-146 Rechnik Volgotankera, BK-147 Reniets, BK-148 - 152 344 Yd, Molotov: BK-153, 155-157, 225-230, 239, 261-266, 358, 359 1946: BK-153, 155 - 157, 225-230, 239 1947: BK-261-266, 358, 359 |
|
Losses |
BK-2 (12.7.1944), No22 (1.8.1942), No311 (10.10.1943), BK-92 (12.7.1944), BK-321 (9.12.1944), No312 (30.8.1943), No34 (30.10.1942), No201 (27.7.1942), No102 (8.7.1941), No103 (11.7.1941), No301 (3.9.1941), BK-131 Geroy Sovetskogo Soyuza Filchenkov (21.3.1945), No133 Geroy Sovetskogo Soyuza Parshin (18.8.1943), No401 (19.9.1941), No402 (21.11.1941), No403 (19.7.1941), No204 (28.6.1941), BK-212 (25.4.1945), BK-213 (26.4.1945), BK-214 (25.4.1945), No123 Geroy Sovetskogo Soyuza Odintsov (18.8.1943), BK-244 (3.4.1945), No304 (3.9.1941), No101 (18.9.1941), No102 (18.9.1941), No103 (18.9.1941), BK-323 (17.8.1944), No104 (18.9.1941), No101 (15.8.1942), No204 (15.8.1942), No103 (15.8.1942), No404 (13.8.1941), No501 (11.7.1941), No202 (15.8.1942), No102 (15.8.1942), No203 (18.8.1941), No203 (27.7.1942), BK-7 (20.3.1945), BK-8 (27.4.1945), BK-303 (12.7.1944) |
|
Transfers |
none |
|
Discarding |
1949/69: BK-1, 3 - 6, 16 - 19, 26 - 29, 31 - 34, 43, 60, 76 - 79, 85 - 90, 104 - 111, 124, 132, 134, 139 - 153, 155 - 157, 186 - 206, 222 - 224, 234, 301, 302, 304 - 307, 325, 335 - 339, 371 - 385 1949: BK-11, 12, 41, 42, No50 1956: BK-14, 322 1957: BK-231, 232, 241, 242 1958: BK-44, 93, 243 1959: BK-233, 313 and many others 1960: BK-13 |
|
Displacement standard, t |
26 |
|
Displacement full, t |
30 |
|
Length, m |
22.7 |
|
Breadth, m |
3.54 |
|
Draught, m |
0.55 |
|
No of shafts |
1 |
|
Machinery |
1 GAM-34BS petrol engine |
|
Power, h. p. |
750 |
|
Max speed, kts |
19.7 |
|
Fuel, t |
petrol 1.3 |
| Endurance, nm(kts) | 250(13) |
|
Armour, mm |
belt: 7, deck: 4, turrets: 45 - 30, CT: 7 |
|
Armament |
1 x 1 - 76/15 L-10, 2 x 2 - 12.7/79 or 2 x 1 - 12.7/79 or 2 x 1 - 7.6/94, 1 x 1 - 7.6/94 boats completed from 1940: 1 x 1 - 76/40 F-34 (most) or 1 x 1 - 76/22 L-11 (few), 2 x 2 - 12.7/90 or 2 x 1 - 12.7/79 or 2 x 1 - 7.6/94, 1 x 1 - 7.6/94 some boats completed in 1940 - 1942: 1 x 1 - 76/28 8K, 2 x 2 - 12.7/79 or 2 x 1 - 12.7/79 or 2 x 1 - 7.6/94 some boats completed from 1942: 1 x 1 - 76/40 F-34 or 1 x 1 - 76/22 L-11 or 1 x 1 - 76/28 8K, 1 x 24 - 82 M-8 RL, 1 x 2 - 12.7/79 or 1 x 1 - 12.7/79, (0 - 1) x 1 - 7.6/94 boats completed from 1944: 1 x 1 - 76/40 F-34, 1 x 2 - 12.7/79, 2 x 1 - 7.6/94 1946-1947: 1 x 1 - 76/42 F-34, 1 x 2 - 12.7/79, 2 x 1 - 7.6/94 |
|
Complement |
13 |
Project history: Designed in 1934 under guidance of Yu. Yu. Benua. Smaller variant of project 1124 with one tank turret instead of two and single-shaft machinery. Also basic armament was similarly varied. Boats could be equipped by 3 single 7.62mm MGs in individual cupolas, either 2 single or twin 12.7mm MGs. In days of war part of boats was armed by 1 octuple 82mm rocket launcher instead of aft MG.
Ship protection: Hull and CT had bullet-proof protection, guns placed in standard tank turrets. 76/30mm 8K guns were on open mounts without shields.
Modernizations: Many boats were re-armed by various schemes, mostly as presented in the table.
Naval service: No215 was captured by Finnish boats 23.8.1941, commissioned them as VTV1 but returned to Soviet Navy in December 1944 and renamed BK-60.
BK-232 1945
