K-193 1931
|
Names |
K-193, 9.1941- ¹013 [No013] K-194, 9.1941- ¹023 [No023], 5.1944- ÑÊ-23 [SK-23] K-195, 9.1941- ¹033 [No033], 5.1944- ÑÊ-33 [SK-33] K-196, 12.1941- ¹0128 [No0128] K-206, 9.1941- ¹043 [No043], 11.1943- ¹08 [No08], 5.1944- ÑÊ-43 [SK-43] K-207, 9.1941- ¹063 [No063] K-208, 9.1941- ¹073 [No073], 5.1944- ÑÊ-73 [SK-73] K-220, 9.1941- ¹053 [No053] K-325 - 327, 9.1941- È-34 - 36 [I-34 - 36], 10.1944- ÑÊ-34 - 36 [SK-34 - 36] K-328, 9.1941- È-37 [I-37] K-329 - 331, 9.1941- È-38 - 40 [I-38 - 40], 10.1944- ÑÊ-38 - 40 [SK-38 - 40] |
|
Builders |
5 Yd, Leningrad: K-193-196, 206-208, 220, 325-331 |
|
Completed |
1931: K-193 - 196, 206 - 208, 220 1932: K-325 - 331 |
|
Losses |
No013 (1942), No0128 (1.11.1943), No063 (29.12.1941), No053 (1944), I-37 (30.10.1941) |
|
Transfers |
none |
|
Discarding |
1950s: all |
|
Displacement standard, t |
|
|
Displacement full, t |
19 |
|
Length, m |
19.8 |
|
Breadth, m |
3.30 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 petrol engines |
|
Power, h. p. |
600 |
|
Max speed, kts |
16 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | 350(13) |
|
Armament |
1 x 1 - 45/43 21K or (1 x 1 - 12.7/79, 1 x 1 - 7.6/94) |
|
Complement |
12 |
Project history: Board Guard patrol boats designed by A. L. Zolotov, were built on plant No5 (former Zolotov's boatyard) in Leningrad. Wooden-hulled. Differed by high hull strength and good seaworthiness.
Modernizations: None.
Naval service: K-193 - 196, 206 - 208 and 220 were transferred to Navy in July 1941, K-325 - 331 in September. Survived boats was returned in June 1945 (SK-23, 33, 43), August 1945 (SK-34 - 36, 38 - 40), 1946 (SK-73).

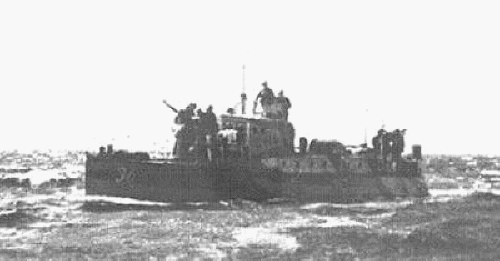

I-36
