PSKR-500 border guard boats (project 14230) (2001-2005)
TS-100 custom patrol craft (pr. 14232) (1997-2007)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 14230 (Border Guard) | |||||||
| ПСКР-500 [PSKR-500] | 135 | 701 | Volga, Nizhniy Novgorod | 23.6.2000 | 12.2001 | in service (2019) | |
| ПСКР-501 [PSKR-501] | 415 | 702 | Volga, Nizhniy Novgorod | 1997 | 22.7.2005 | 10.2005 | in service (2019) |
| Project 14232 (Custom) | |||||||
| ТС-100 [TS-100] | 801 | Yaroslavl SYd | 21.12.1994 | 3.10.1996 | 30.9.1997 | in service (2019) | |
| ТС-101 [TS-101], 5.2008- Дмитрий Шишков [Dmitriy Shishkov] | 802 | Yaroslavl SYd | 31.5.1995 | 15.11.2002 | 20.8.2003 | in service (2019) | |
| Порт-Петровск [Port-Petrovsk] (ex-ТС-102 [TS-102]) | 803 | Yaroslavl SYd | 2.4.1995 | 18.8.2006 | 2.12.2007 | in service (2019) | |
| Пётр Матвеев [Piotr Matveev] | 420 | Khabarovsk SYd | 1998 | in service (2019) | |||
| Павел Верещагин [Pavel Vereshchagin] | 421 | Khabarovsk SYd | 2000 | 5.11.2000 | in service (2019) | ||
| Виталий Кирсанов [Vitaliy Kirsanov] | 422 | Khabarovsk SYd | 2.11.2001 | in service (2019) | |||
|
Displacement standard, t |
pr. 14230: 84 pr. 14232: 86 |
|
Displacement full, t |
pr. 14230: 100 pr. 14232: 99 |
|
Length, m |
pr. 14230: 36.0 pr. 14232: 35.4 |
|
Breadth, m |
pr. 14230: 7.85 pr. 14232: 8.30 |
|
Draught, m |
pr. 14230: 2.16 pr. 14232: 2.00 max |
|
No of shafts |
2 |
|
Machinery |
2 M-533 diesels |
|
Power, h. p. |
10000 |
|
Max speed, kts |
pr. 14230: 55 pr. 14232: 52 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 14230: 800(30) pr. 14232: 500(30) |
|
Armament |
pr. 14230: 1 x 6 - 30/54 AK-306 pr. 14232: 1 x 1 - 12.7/79, 1 x 1 - 7.6/90 |
|
Sensors |
pr. 14230: MR-3PV Liman-18M1 radar pr. 14232: Liman-T radar |
|
Complement |
16 |
Project history: Large fast patrol craft.
Modernizations: 2010s, TS-100: - Liman-T radar; + Furuno M-1934C radar
2010s, Dmitriy Shishkov: - Liman-T radar; + Furuno FR-8062, Furuno M-1724C/C-MAP radars
Naval service: No significant events.

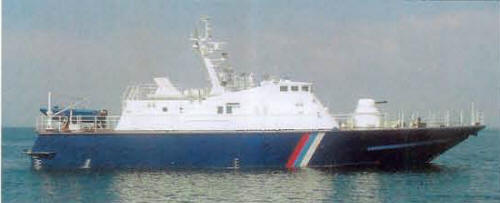

PSKR-500 2006

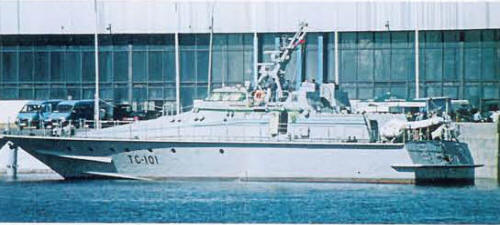

TS-101 2003
