PSKR-400 border guard boats (pr. 14310) (2001)
PSKR-401 border guard boats (pr. 14310M) (2003-2007)
Noyabrsk 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 14310 | |||||||
| ÏÑÊÐ-400 [PSKR-400] (ex-ÏÊ-500 [PK-500]) | 137 | 02500 | Vympel, Rybinsk | 28.7.2001 | in service (2019) | ||
| Project 14310M | |||||||
| ÏÑÊÐ-401 [PSKR-401], 5.2008- Íîÿáðüñê [Noyabrsk] | 558 | 02501 | Vympel, Rybinsk | 27.5.2003 | 5.11.2003 | in service (2019) | |
| ÏÑÊÐ-402 [PSKR-402] | 02502 | Vympel, Rybinsk | 26.7.2007 | 10.2007 | in service (2019) | ||
|
Displacement standard, t |
110 |
|
Displacement full, t |
126 |
|
Length, m |
35.5 |
|
Breadth, m |
6.60 |
|
Draught, m |
1.74 hull 2.65 max |
|
No of shafts |
2 |
|
Machinery |
2 M-520BE diesels |
|
Power, h. p. |
10800 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(8) |
|
Armament |
pr. 14310: 2 x 3 Shturm ATM (6 9M120-1), 1 x 8 Igla-1M SAM (8 Igla-1M), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89 pr. 14310M: 1 x 8 Igla-1M SAM (8 Igla-1M), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89 |
|
Sensors |
radar |
|
Complement |
12 |
Project history: Fast patrol craft, successor for the Project 205P.
Modernizations: None.
Naval service: No significant events.

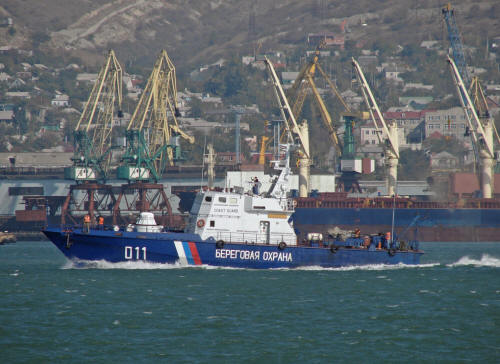

Noyabrsk
