Names |
دت-73 [PK-73], 11.1943- ¹048 [No048], 5.1944- MO-73 دت-74 [PK-74], 11.1943- ¹058 [No058], 5.1944- MO-301 دت-75 [PK-75], 11.1943- ¹068 [No068], 5.1944- MO-305 دت-76 [PK-76], 11.1943- ¹088 [No088] |
|
Builders |
5 Yd, Leningrad: PK-73-76 |
|
Completed |
1935: PK-73 - 76 |
|
Losses |
No088 (31.10.1943) |
|
Transfers |
none |
|
Discarding |
1950s: all survived |
|
Displacement standard, t |
|
|
Displacement full, t |
55 |
|
Length, m |
26.2 |
|
Breadth, m |
4.00 |
|
Draught, m |
1.20 |
|
No of shafts |
3 |
|
Machinery |
3 petrol engines |
|
Power, h. p. |
2065 |
|
Max speed, kts |
24 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | 500(8) |
|
Armament |
2 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 2 DCR (8) |
| Electronic equipment | Tamir-1 sonar |
|
Complement |
21 |
Project history: Development of type MO-2 with a little changed machinery structure.
Modernizations: None.
Naval service: All boats were transferred to Navy in June 1941. Survived boats were transferred to Board Guard after war.

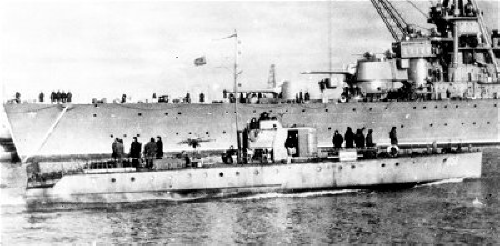

No058
