Kedrov 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Менжинский [Menzhinskiy] | 201 | Zaliv, Kerch' | 14.8.1981 | 31.12.1982 | 29.12.1983 | stricken 9.1998 | |
| Дзержинский [Dzerzhinskiy] | 158 | 202 | Zaliv, Kerch' | 20.1.1983 | 2.3.1984 | 29.12.1984 | in service (2019) |
| Имени XXVII съезда КПСС [Imeni XXVII Syezda KPSS] (ex-Юрий Андропов [Yuriy Andropov]), 1.1992- Орёл [Oriol] | 156 | 203 | Zaliv, Kerch' | 26.9.1983 | 2.11.1985 | 30.9.1986 | in service (2019) |
| Имени 70-летия ВЧК-КГБ [Imeni 70-letiya VChK-KGB], 1.1992- Псков [Pskov] | 204 | Zaliv, Kerch' | 26.12.1985 | 18.2.1987 | 29.12.1987 | stricken 4.2002 | |
| Имени 70-летия погранвойск [Imeni 70-letiya Pogranvoysk] | 205 | Zaliv, Kerch' | 2.4.1987 | 28.3.1988 | 30.12.1988 | stricken 4.2002 | |
| Кедров [Kedrov] | 206 | Zaliv, Kerch' | 4.4.1988 | 30.4.1989 | 28.12.1989 | stricken 4.2002 | |
| Воровский [Vorovskiy] | 207 | Zaliv, Kerch' | 15.5.1989 | 28.7.1990 | 29.12.1990 | stricken 9.2017 | |
| Киров [Kirov] | 208 | Zaliv, Kerch', Ukraine | 5.10.1990 | 29.3.1992 | 2.4.1993 // --- | completed for Ukraine (Гетьман Сагайдачний [Getman Sagaydachnyy]) | |
| Красный вымпел [Krasnyy Vympel] | 209 | Zaliv, Kerch', Ukraine | 27.12.1992 | --- | --- | incomplete for Ukraine 1991 (Гетьман Байда Вишневецький [Getman Bayda Vishnevetskiy]), suspended 1995 |
|
Displacement standard, t |
3274 |
|
Displacement full, t |
3642 |
|
Length, m |
123.0 |
|
Breadth, m |
14.2 |
|
Draught, m |
4.80 hull 7.30 max |
|
No of shafts |
2 |
|
Machinery |
201-206: COGAG: 2 M7K gas turbine units (each consisted of M62 cruising turbine and M8K boost turbine) 207-209: COGAG: 2 M7N gas turbine units (each consisted of M70 cruising turbine and M8K boost turbine) |
|
Power, h. p. |
12000 + 34000 = 46000 |
|
Max speed, kts |
31 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
3000(18) |
|
Armament |
1 x 2 Osa-MA2 SAM (20 9M33), 1 x 1 - 100/59 AK-100, 2 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-27PS) |
|
Electronic equipment |
201, 202: MR-310 Angara-A, MR-145 Lev-218-100, 4K-33, MR-220 Reyd, 2x MR-212/201 Vaygach-U radars, MG-335MS Platina-MS, MGK-345 Bronza, MGS-407 sonars, MI-110KM wake detector, MP-401S Start-S ECM suite 203, 204: MR-750 Fregat-M2, MR-145 Lev-218-100, 4K-33, MR-220 Reyd, 2x MR-212/201 Vaygach-U radars, MG-335MS Platina-MS, MGK-345 Bronza, MGS-407 sonars, MI-110KM wake detector, MP-401S Start-S ECM suite 205-209: MR-750 Fregat-M2, MR-145 Lev-218-100, 4K-33, MR-225 Reyd-M, 2x MR-212/201 Vaygach-U radars, MG-335MS Platina-MS, MGK-345 Bronza, MGS-407 sonars, MI-110KM wake detector, MP-401S Start-S ECM suite |
|
Complement |
193 |
Project history: Major redesign of Naval Project 1135/1135M frigate for Border Guard service, with elimination of Metel'/Rastrub missiles in favor of helicopter facility (gunmounts were moved fwd).
Modernizations: 2010s, Vorovskiy, Dzerzhinskiy: + Furuno 1525 radar
2010s, Dzerzhinskiy: + JMA-5300 radar
2010s, Vorovskiy, Oriol: + MR-231 Pal radar
2010s, Vorovskiy: + MR-2PV Baltika-M radar
Naval service: No significant events.

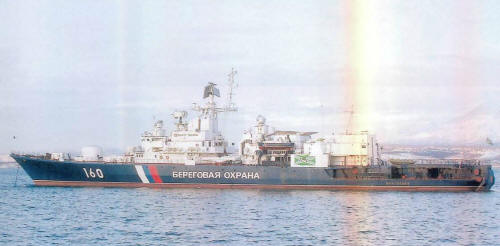

Vorovskiy 2007
