Komandor 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Командор [Komandor] | 157 | 01695 | Danyard, Frederikshavn, Denmark | 1.12.1988 | 1.9.1989 // 8.1998 | in service (2019) | |
| Шкипер Гек [Shkiper Gek] | 01696 | Danyard, Frederikshavn, Denmark | 20.12.1989 // 8.1998 | in service (2019) | |||
| Херлуф Бидструп [Kherluf Bidstrup] | 01697 | Danyard, Frederikshavn, Denmark | 9.2.1990 // 8.1998 | in service (2019) | |||
| Маньчжур [Manchzhur] | 169 | 01698 | Danyard, Frederikshavn, Denmark | 6.7.1990 // 8.1998 | in service (2019) |
|
Displacement standard, t |
01695: 2019 01696: 1954 01697, 01698: 1979 |
|
Displacement full, t |
01695: 2553 01696: 2684 01697, 01698: 2695 |
|
Length, m |
89.0 |
|
Breadth, m |
13.6 |
|
Draught, m |
4.70 |
|
No of shafts |
1 |
|
Machinery |
2 6ChN40/46 diesels |
|
Power, h. p. |
7000 |
|
Max speed, kts |
19.2 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
7000(19) |
|
Armament |
2 x 1 - 12.7/79, 1 helicopter (Ka-32) |
|
Electronic equipment |
Nayada-5, Furuno 2030S, Furuno 810DS radars |
|
Complement |
42 |
Project history: Ordered 11.11.1987 by Ministry of Fisheries for patrolling in Northern Pacific area, but in 1998 transferred to Border Guard. Helicopter is stored in hangar beneath a flight deck, flight deck is 14m long and has folding sides to increase width. One of two GRP lifeboats and one of two RIBs are used for inspection duties.
Modernizations: 2000s, all: - Ka-32 helicopter; + Ka-27PS helicopter
2010s, Komandor: + JMA-5332-12, JMA-5322-7 radars
Naval service: No significant events.

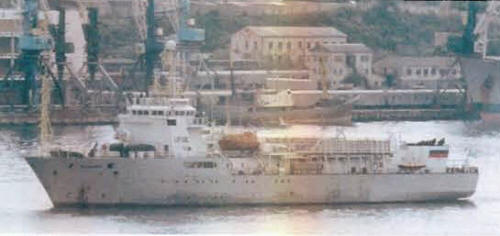

Manchzhur 2003
