Ne Tron' Menya 1865
Kreml' 1892
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Первенец [Pervenets] | Tyne Iron SB, London, UK | 12/1861 | 18.5.1863 | 28.7.1863 | stricken 10.1905 | ||
| Не Тронь Меня [Ne Tron' Menya] | Galerny Is, St. Petersburg | 27.1.1863 | 23.6.1864 | 18.7.1865 | stricken 10.1905 | ||
| Кремль [Kreml'] | Semyannikov & Poletika Wks, St. Petersburg | 2.10.1863 | 26.8.1865 | 1867 | stricken 10.1905 |
|
Displacement normal, t |
Pervenets: 3622 Ne Tron' Menya: 3494 Kreml': 3412 |
|
Displacement full, t |
Kreml': 4000 |
|
Length, m |
Pervenets: 67.6 Ne Tron' Menya: 69.4 Kreml': 67.3 |
|
Breadth, m |
16.2 |
|
Draught, m |
Pervenets: 4.50 Ne Tron' Menya: 4.57 Kreml': 4.60 |
|
No of shafts |
1 |
|
Machinery |
Pervenets: 1 HDA, 2 rectangular boilers Ne Tron' Menya, Kreml': 1 HDA, 4 rectangular boilers |
|
Power, h. p. |
Pervenets: 1067 Ne Tron' Menya: 1232 Kreml': 870 |
|
Max speed, kts |
Pervenets, Ne Tron' Menya: 8 Kreml': 9 |
|
Fuel, t |
coal 500 |
| Endurance, nm(kts) | |
|
Armour, mm |
Pervenets: wrought iron; belt: 114, battery: 114 Ne Tron' Menya: wrought iron; belt: 114, battery: 114, CT: 114 Kreml': wrought iron; belt: 114, battery: 140, deck: 29, CT: 114 |
|
Armament |
Pervenets: 26 x 1 - 196/12 SBML Ne Tron' Menya, Kreml': 17 x 1 - 196/12 SBML |
|
Complement |
Pervenets: 459 Ne Tron' Menya: 394 Kreml': 430 |
Project history: Broadside iron-hulled coast defence ships with projecting bows and pronounced tumblehome, particularly in Pervenets. The engines of the two latter ships came from Russian wooden screw ships, and all three were rigged as three-masted schooners.
Ship protection: The hull was completely armoured above water except in Kreml' where the battery armour was not taken to the bow and stern.
Modernizations: 1867, Pervenets: was armed with 3 x 1 - 203/19 obr. 1867, 21 x 1 - 196/12 SBML
1867: Ne Tron' Menya: was armed with 17 x 1 - 203/19 obr. 1867
1867, Kreml': - 3 x 1 - 196/12; + 2 x 1 - 203/19 obr. 1867
1868, Kreml': - 2 x 1 - 203/19; + 2 x 1 - 196/12 SBML, 2 x 1 - 152/23 obr. 1867, 4 x 1 - 87/17 4pdr obr. 1867
1870, Kreml': - 5 x 1 - 196/12, 4 x 1 - 87/17; + 6 x 1 - 203/19 obr. 1867
1874, Pervenets: - 21 x 1 - 196/12; + 9 x 1 - 203/19 obr. 1867, 2 x 1 - 87/17 4pdr obr. 1867
1874, Kreml': - 9 x 1 - 196/12, 2 x 1 - 152/23; + 10 x 1 - 203/19 obr. 1867, 6 x 1 - 87/17 4pdr obr. 1867
1876, Ne Tron' Menya: - 1 x 1 - 203/19; + 4 x 1 - 87/17 4pdr obr. 1867
1877, Pervenets: - 2 x 1 - 203/19; + 2 x 1 - 152/23 obr. 1867, 1 x 1 - 107/17 9pdr obr. 1867, 2 x 1 - 87/17 4pdr obr. 1867
1877, Kreml': - 2 x 1 - 203/19, 2 x 1 - 196/12; + 1 x 1 - 229/19 obr. 1877, 1 x 1 - 44/41 Ängström
1880, Pervenets: - 2 x 1 - 152/23, 2 x 1 - 87/17; + 1 x 1 - 229/19 obr. 1877, 4 x 1 - 152/25 obr. 1877, 2 x 1 - 47/40 Hotchkiss, 1 x 1 - 44/41 Ängström, 1 x 5 - 37/17 Hotchkiss
1880, Kreml': - 1 x 1 - 229/19, 2 x 1 - 203/19, 6 x 1 - 87/17, 1 x 1 - 44/41
1881, Ne Tron' Menya: - 2 x 1 - 203/19; + 1 x 1 - 44/41 Ängström
1890s, Pervenets: - 1 x 1 - 229/19, 4 x 1 - 203/19, 1 x 1 - 44/41; + 2 x 1 - 152/32 obr. 1877, 2 x 1 - 120/43 Canet, 2 x 1 - 63/17 Baranovski, 4 x 5 - 37/17 Hotchkiss
1890s, Ne Tron' Menya: - 2 x 1 - 203/19, 4 x 1 - 87/17, 1 x 1 - 44/41; + 2 x 1 - 152/25 obr. 1877, 2 x 1 - 63/17 Baranovski
1890s, Kreml': - 4 x 1 - 203/19; + 7 x 1 - 152/32 obr. 1877, 2 x 1 - 63/17 Baranovski, 4 x 1 - 47/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss
Naval service: No significant events.

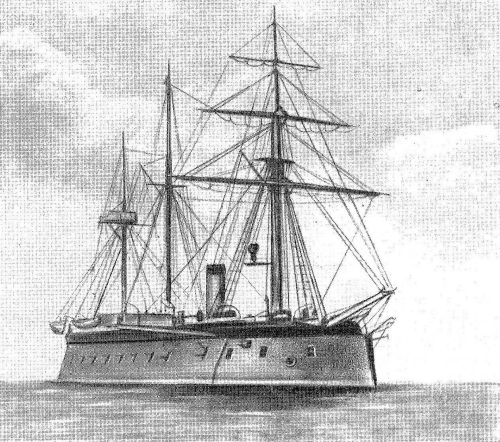

Pervenets

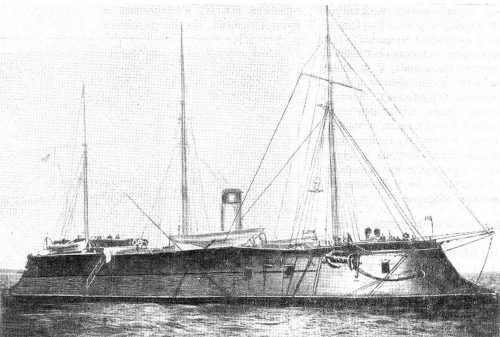

Ne Tron' Menya

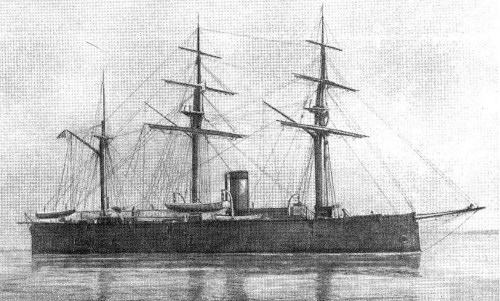

Kreml'
