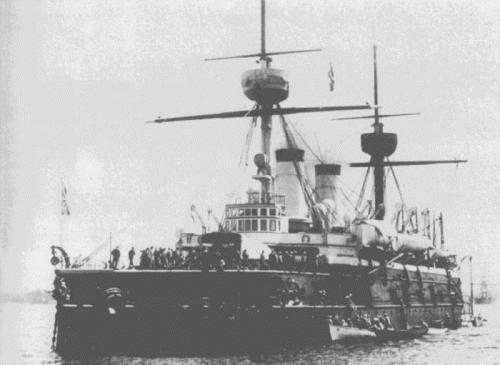

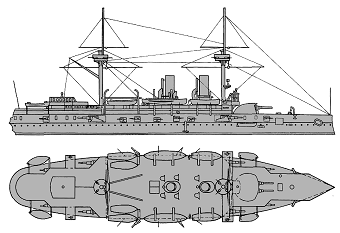

Imperator Alexandr II 1892

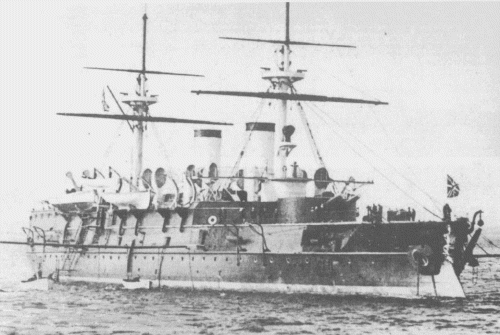

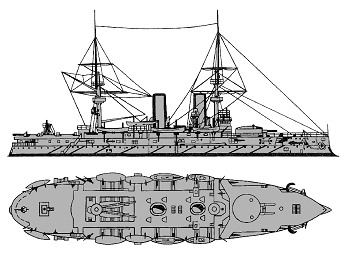

Imperator Nikolay I 1904
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Император Александр II [Imperator Alexandr II], 5.1917- Заря Свободы [Zarya Svobody] | New Admiralty, St. Petersburg | 30.6.1886 | 26.7.1887 | 9.1890 | TS 1914, sold 15.8.1922 | ||
| Император Николай I [Imperator Nikolay I] | Franko-Russkiy plant, St. Petersburg | 20.3.1886 | 1.6.1889 | 7.1891 | captured by Japan 28.5.1905 (壱岐 [Iki]) |
|
Displacement normal, t |
Imperator Alexandr II: 10010 Imperator Nikolay I: 9672 |
|
Displacement full, t |
|
|
Length, m |
99.3 pp 101.7 wl 105.6 oa |
|
Breadth, m |
20.4 |
|
Draught, m |
7.77 |
|
No of shafts |
2 |
|
Machinery |
Imperator Alexandr II: 2 VC, 12 cylindrical boilers Imperator Nikolay I: 2 HTE, 12 cylindrical boilers |
|
Power, h. p. |
8500 |
|
Max speed, kts |
15.3 |
|
Fuel, t |
Imperator Alexandr II: coal 1200 Imperator Nikolay I: coal 1370 |
| Endurance, nm(kts) | 4800(8) |
|
Armour, mm |
Imperator Alexandr II: compound; belt: 356 - 102, barbette: 254, battery: 152 - 76, CT: 254, deck: 63 Imperator Nikolay I: compound; belt: 356 - 102, turret: 254, barbette: 254, battery: 152 - 76, CT: 203, deck: 63 |
|
Armament |
Imperator Alexandr II: 1 x 2 - 305/27 obr. 1877, 4 x 1 - 229/32 obr. 1877, 8 x 1 - 152/32 obr. 1877, 4 x 1 - 63/17 Baranovski, 10 x 5 - 47/22 Hotchkiss, 8 x 5 - 37/27 Hotchkiss, 5 - 381 TT (1 bow, 4 beam) Imperator Nikolay I: 1 x 2 - 305/27 obr. 1877, 4 x 1 - 229/32 obr. 1877, 8 x 1 - 152/32 obr. 1877, 2 x 1 - 63/17 Baranovski, 10 x 5 - 47/22 Hotchkiss, 8 x 5 - 37/17 Hotchkiss, 6 - 381 TT (1 bow, 1 stern, 4 beam) |
|
Complement |
616 |
Project history: Small cheap battleships for Baltic intended to operate against Swedish and German contemporaries. First ship, Imperator Alexandr II, carried main guns in the barbette mount, and the second, Imperator Nikolay I, had the turret.
Ship protection: Imperator Alexandr II: Complete belt had 2.44m height and 356mm thickness (tapering to 152mm at lower edge) amidships (between main gun barbette and main mast) decreased respectively to 305mm till main gun barbette fwd and area between aft 229mm and 152mm casemates aft, 225mm till fwd TT and aft bulkhead of aft casemate. Aft part of belt had 125mm thickness, fwd part between fwd TT and stem divided to 3 approximately equal parts with 203-, 152- and 100mm thickness. Belt was covered by flat 63mm deck. 229mm guns had 76-51mm protection alongside ship and 152mm transverse bulkheads, 152mm guns had local 51mm protection. Main gun barbette had 254mm sides and 76mm crown.
Ship protection: Imperator Nikolay I: Complete belt had 2.44m height and 356mm thickness (tapering to 152mm at lower edge) amidships (between main gun barbette and main mast) decreased respectively to 305mm till main gun barbette fwd and area between aft 229mm and 152mm casemates aft, 225mm till fwd TT and aft bulkhead of aft casemate. Aft part of belt had 125mm thickness, fwd part between fwd TT and stem divided to 3 approximately equal parts with 203-, 152- and 100mm thickness. Belt was covered by flat 63mm deck. 229mm guns had 76-51mm protection alongside ship and 152mm transverse bulkheads, 152mm guns had local 51mm protection. Main gun turret had 254mm sides and 63mm roof, barbette had 254mm protection.
Modernizations: 1900, Imperator Nikolay I: boilers were replaced by 16 Belleville; - 10 x 5 - 47/22, 6 x 5 - 37/17; + 16 x 1 - 47/40 Hotchkiss
1904, Imperator Nikolay I: + 1 x 1 - 152/44 Canet, some (probably 6 - 8) x 1 - 75/48 Canet
1904, Imperator Alexandr II: - 4 x 1 - 229/32, 8 x 1 - 152/32, 10 x 5 - 47/22, 8 x 5 - 37/17, 5 - 381 TT; + 5 x 1 - 203/43, 8 x 1 - 152/44 Canet, 10 x 1 - 47/40 Hotchkiss, 8 x 1 - 7.6/94
1915, Imperator Alexandr II: - 2 x 1 - 47/40, 6 x 1 - 7.6/94; + 1 x 1 - 75/48 Canet
Naval service: Imperator Nikolay I surrendered to Japanese in the Battle of Tsushima 28.5.1905, repaired and incorporated to Japanese navy as Iki. She was stricken in 1915 and sunk as target in October. Imperator Alexandr II was used for gunnery training from 1914 and laid up in May 1921.
Imperator Alexandr II
Imperator Nikolay I
