Admiral Lazarev 1870
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Адмирал Лазарев [Admiral Lazarev] | Carr & McFerson, St. Petersburg | 29.5.1865 | 21.9.1867 | 1869 | stricken 8.1907 | ||
| Адмирал Грейг [Admiral Greyg] | New Admiralty, St. Petersburg | 1.9.1865 | 30.10.1868 | 1869 | stricken 12.1909 |
|
Displacement normal, t |
Admiral Lazarev: 3820 Admiral Greyg: 3768 |
|
Displacement full, t |
|
|
Length, m |
77.7 wl |
|
Breadth, m |
13.1 |
|
Draught, m |
6.15 - 6.25 max |
|
No of shafts |
1 |
|
Machinery |
1 HDA, 4 rectangular boilers |
|
Power, h. p. |
2020 |
|
Max speed, kts |
Admiral Lazarev: 10.5 Admiral Greyg: 11 |
|
Fuel, t |
coal 300 |
| Endurance, nm(kts) | |
|
Armour, mm |
wrought iron; side: 114, turrets: 114, CT: 127 |
|
Armament |
3 x 2 - 229/17 obr. 1867, 2 x 1 - 87/17 4pdr obr. 1867 |
|
Complement |
269 - 274 |
Project history: Turret ships generally resembling the Prince Albert except in the number of turrets. There were three masts and originally a fore and aft rig was provided.
Ship protection: The side armour was complete, and at designed draught extended from 1.7m above wl to 1.5m below. There was no armour deck. The CT was small and located on the bridge with no tube to the deck.
Modernizations: 1874, both: - 3 x 2 - 229/17; + 3 x 1 - 279/17 obr. 1867
1878, both: - 3 x 1 - 279/17; + 3 x 1 - 279/18 obr. 1877, 2 x 1 - 87/17 4pdr obr. 1867, 1 x 1 - 44/41 Ängström
1890s, both: - 4 x 1 - 87/17, 1 x 1 - 44/41; + 2 x 1 - 63/17 Baranovski, 5 x 1 - 47/40 Hotchkiss, 2 x 1 - 37/20 Hotchkiss
1900-1903, both: were reboilered with 4 cylindrical boilers
Naval service: No significant events.

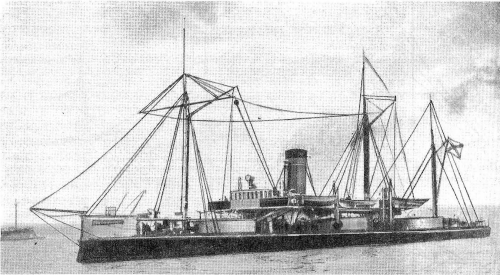

Admiral Lazarev
