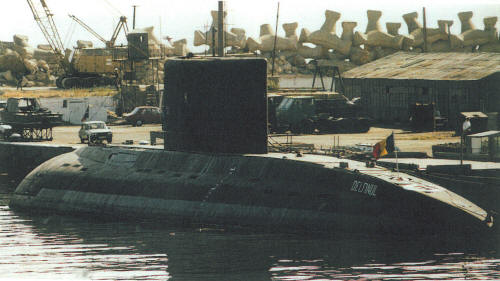

Delfinul 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Delfinul (ex-Á-801 [B-801]) | 521 | 401 | Krasnoye Sormovo, Gorkiy, USSR | 6.4.1984 | 20.9.1985 | 29.9.1985 // 12.1986 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
2325 / 3075 |
|
Length, m |
72.6 |
|
Breadth, m |
9.90 hull 12.8 max |
|
Draught, m |
6.60 |
|
No of shafts |
1 |
|
Machinery |
2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching |
|
Power, h. p. |
4080 / 5500 / 150 |
|
Max speed, kts |
10.7 / 18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6880(7) / 400(3) |
|
Armament |
6 - 533 TT (bow, 18, or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) |
|
Electronic equipment |
MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS |
|
Complement |
60 |
|
Diving depth operational, m |
240 |
Project history: Soviet project 877EKM submarine, built specially for export. Transfer of second submarine was cancelled for financial reasons.
Modernizations: None.
