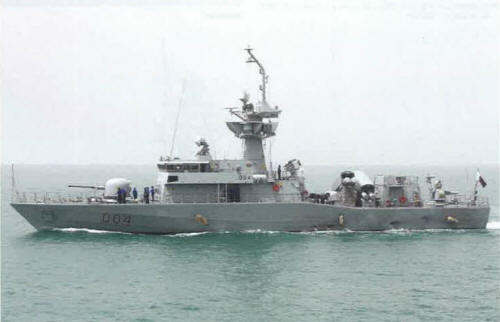

Barzan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| برزان [Barzan] | Q04 | Vosper Thornycroft, Woolston, UK | 7.2.1994 | 1.4.1995 | 9.5.1996 | in service (2020) | |
| حوار [Huwar] | Q05 | Vosper Thornycroft, Woolston, UK | 8/1994 | 15.7.1995 | 6.6.1996 | in service (2020) | |
| العديد [Al Udeid] | Q06 | Vosper Thornycroft, Woolston, UK | 4/1995 | 21.3.1996 | 16.12.1996 | in service (2020) | |
| الدبل [Al Deebeel] | Q07 | Vosper Thornycroft, Woolston, UK | 8/1995 | 21.8.1996 | 3.7.1997 | in service (2020) |
|
Displacement standard, t |
380 |
|
Displacement full, t |
530 |
|
Length, m |
52.0 pp 65.3 oa |
|
Breadth, m |
9.00 |
|
Draught, m |
2.50 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 20V538 TB93 diesels |
|
Power, h. p. |
18800 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil 44 |
|
Endurance, nm(kts) |
1800(12) |
|
Armament |
2 x 4 MM40 Exocet SSM (8 MM40), 1 x 6 Sadral SAM (6 Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 7 - 30/77 Goalkeeper SGE-30, 2 x 1 - 12.7/90 |
|
Sensors |
MRR-3D, Sting, Goalkeeper, type 1007 radars, IRSCAN e/o system, DR-3000S1 Compact, ARBB-33 Salamandre ECM suites, Dagaie Mk 2 decoy RL, SEWACO FD CCS |
|
Complement |
35 |
Project history: Vita class, design derived from Vosper Thornycroft "Vita" concept. Ordered in 1992.
Modernizations: None.
Naval service: No significant events.
Barzan 2010
