| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Espadarte | E | Fiat-San Giorgio, La Spezia, Italy | 1910 | 5.10.1912 | 1913 | discarded 1931 |
|
Displacement standard, t |
|
|
Displacement normal, t |
245 / 300 |
|
Length, m |
45.1 |
|
Breadth, m |
4.20 |
|
Draught, m |
2.90 mean 3.00 max |
|
No of shafts |
2 |
|
Machinery |
2 Fiat diesels / 2 electric motors |
|
Power, h. p. |
550 / 300 |
|
Max speed, kts |
13.8 / 8 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(8.5) / 100(4) |
|
Armament |
2 - 450 TT (bow, 4) |
|
Complement |
21 |
| Diving depth operational, m |
Project history: Prototype of Foca class boats. Laurenti-Fiat type.
Modernizations: None.
Naval service: No significant events.

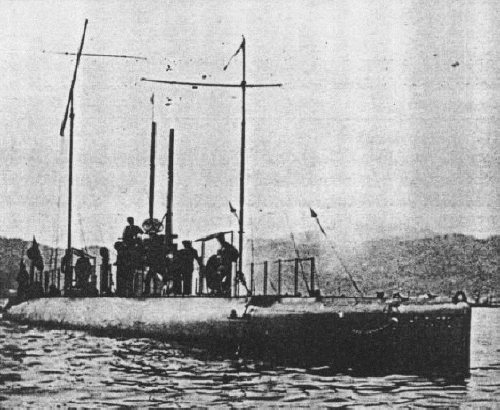

Espadarte
