Names |
Flecha |
|
Builders |
ER de Lisboa: Flecha |
|
Completed |
1909: Flecha |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1933: Flecha |
|
Displacement normal, t |
44 |
|
Displacement full, t |
|
|
Length, m |
21.0 |
|
Breadth, m |
4.00 |
|
Draught, m |
0.70 |
|
No of shafts |
side wheels |
|
Machinery |
1 VTE, 1 boiler |
|
Power, h. p. |
45 |
|
Max speed, kts |
10 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 37/20 H(tr)37/23 |
|
Complement |
7 |
Project history: Built to the order of the Colonial Department. Also named Flexa.
Modernizations: None.
Naval service: No significant events.

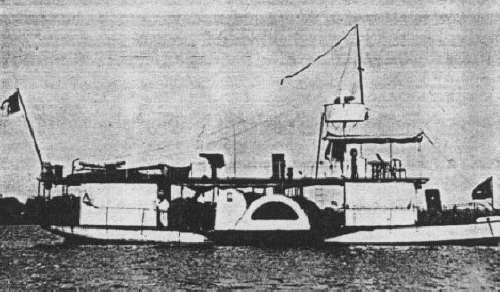

Flecha 1910
