PORTUGUESE NAVY (PORTUGAL)

MINE WARFARE SHIPS

VULCANO minelayer (1910)

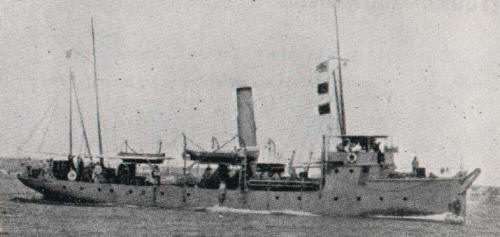

Vulcano 1918

Name No Yard No Builder Laid down Launched Comp Fate
Vulcano     Thornycroft, Southampton, UK   1910 1910 discarded late 1940s



Displacement normal, t

151

Displacement full, t



Length, m

33.5

Breadth, m

5.90

Draught, m

1.30 normal 2.20 max

No of shafts

2

Machinery

2 VTE, 1 Thornycroft cylindrical boiler

Power, h. p.

412

Max speed, kts

12

Fuel, t

coal
Endurance, nm(kts)

Armament

mines

Complement

24

Project history: Small net- and a mine-layer. In 1920s-1930s she was employed for torpedo training and carried 3 torpedo tubes.

Modernizations: None.

Naval service: No significant events.

Vulcano 1933
