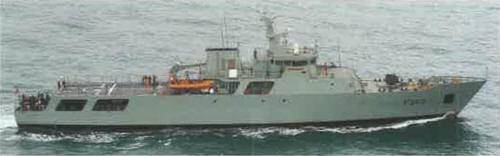

Viana do Castelo 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Viana do Castelo | P360 | Estaleiros Navals, Viana do Castelo | 2004 | 1.10.2005 | 3.1.2011 | in service (2019) | |
| Figueira da Foz | P361 | Estaleiros Navals, Viana do Castelo | 2004 | 1.10.2005 | 23.11.2013 | in service (2019) | |
| Sines | P362 | WestSea, Viana do Castelo | 2015 | 3.5.2017 | 6.7.2018 | in service (2019) | |
| Setúbal | P363 | WestSea, Viana do Castelo | 2015 | 13.9.2017 | 6.2.2019 | in service (2019) | |
| Funchal | P364 | WestSea, Viana do Castelo | 2019 | 2021 | 2022 | awarded (2019) | |
| Aveiro | P365 | WestSea, Viana do Castelo | 2020 | 2022 | 2024 | awarded (2019) |
|
Displacement standard, t |
1300 |
|
Displacement full, t |
1720 |
|
Length, m |
76.8 pp 83.1 oa |
|
Breadth, m |
13.0 |
|
Draught, m |
3.85 |
|
No of shafts |
2 |
|
Machinery |
2 Wärtsilä 12V26 diesels |
|
Power, h. p. |
10600 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
P360: 1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90, helicopter deck P361-365: 1 x 1 - 30/82 Mk 44 Marlin, 2 x 1 - 7.6/90, helicopter deck |
|
Electronic equipment |
P360: 2x Manta 2000 radars, Vigy 10 Mk 3 e/o system P361-365: 2x Manta 2000 radars, Vigy 10 Mk 3, Albatros e/o systems |
|
Complement |
38 + 32 passengers |
Project history: Replacement for João Coutinho and Baptista de Andrade classes patrol ships and Cacine class patrol craft. Ships have helicopter deck (but no hangar), 4 fast boats and 3 firefighting monitors. Two 200kW electric motors provide slow economical propulsion.
Modernizations: 2013, Viana do Castelo: - 1 x 1 - 40/60; + 1 x 1 - 30/82 Mk 44 Marlin, Albatros e/o system
Naval service: No significant events.
Viana do Castelo 2010
